Flat roof tile

Marseilleceramicdouble

Product overview

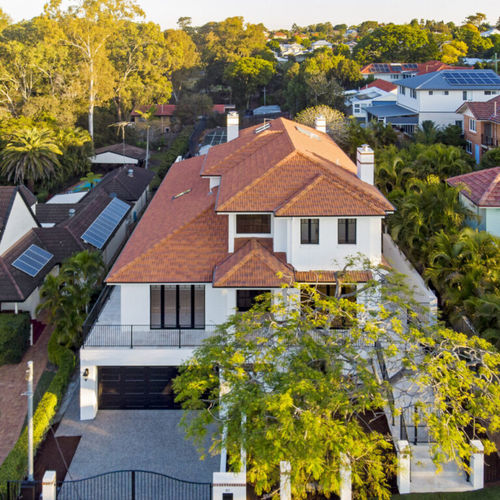

Flat roof tile Marseille in red for straight or broken-bond laying. Large format reduces the number of pieces per m2 and can lower installation time and material consumption.

Data sheet
Dimensions: a = 466 mm; b = 260 mm; c = 55 mm
a = 18.34"; b = 10.24"; c = 2.16"
Pieces per m2: 11 (theoretical)
Weight per piece: 3,600 g / 7.93 lbs
Longitudinal fit: 403 mm (±5 mm) / 15.86" (±0.2")
Transversal fit: 225 mm (±1 mm) / 8.85" (±0.04")
Units per pallet: 240
Weight per pallet: 864 kg / 1904.79 lbs
Laying: Straight / broken bond

Features

• DOUBLE INTERLOCKING: Double side and upper interlocking for improved watertightness.
• EASY AND QUICK FIXATION: Traditional profile compatible with straight and broken-bond laying, suitable for restoration projects.
• COST REDUCTION: Large format (11 units/m2), strapping in packs of 5 and optimized palletization reduce handling and installation costs.
• HIGH BREAKAGE RESISTANCE: Clay composition and controlled pressing provide flexural strength above standard values.

Color range
Available in several finishes and red variants (examples: TLJ JASPEE RED, TLR).

Technical specifications

• Dimensions (a x b x c): 466 x 260 x 55 mm (tolerance ± approx. 2%).
• Pieces per m2: 11 (theoretical; to be verified on site).
• Weight per piece: 3,600 g (≈ 7.93 lbs).
• Longitudinal fit: 403 mm (±5 mm).
• Transversal fit: 225 mm (±1 mm).
• Units per pallet: 240; Weight per pallet: 864 kg (≈ 1904.79 lbs).
• Laying patterns: Straight or broken bond.
• Interlocking: Double side and upper interlocking for enhanced watertightness.
• Packaging: Strapping in packs of 5 and optimized palletization.
• Compliance: Conforms to EN 1304; certified performance for geometry, flexural strength, impermeability and frost resistance.
