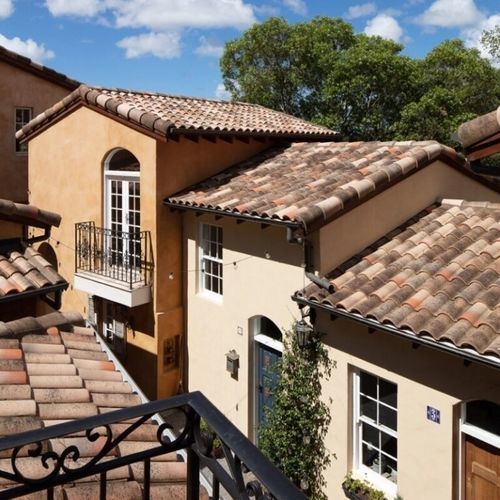

Flat roof tile JASPEE

Marseillesinterlockingclay

Description
A versatile and easy-to-fit roof tile. As there are bigger pieces, the installation and material costs are consequently reduced, enhancing the elegance and durability of this kind of roof tile.

Data sheet
Dimensions*: a: 466 mm; b: 260 mm; c: 55 mm (a: 18.34”; b: 10.24”; c: 2.16”)
Pieces per m2 - sq.: 11 - 101
Weight piece: 3.600 gr / 7.93 lbs
Longitudinal fit**: 403 mm (±5 mm) / 15.86” (±0.2”)
Transversal fit**: 225 mm (±1 mm) / 8.85” (±0.04”)
Units per pallet: 240
Weight per pallet: 864 kg / 1904.79 lbs
Laying: Straight / broken bond

Features

• DOUBLE INTERLOCKING: The double side and upper interlocking allows the roof to be extremely watertight, ensuring its impermeability.
• EASY AND QUICK FIXATION: Its traditional shape together with installation by crossbond allows great adaptation to restoration.
• COST REDUCTION: Its large format (11 units/m2) and strapping every 5 units, as well as packaging on pallets of 180 and 240 units, reduce installation costs.
• HIGH BREAKAGE RESISTANCE: The clay’s composition and its perfect press performance produce flexion rates even higher than Standard.

Color range

• Design and color variety for modern and vanguard architecture.
• Colour on this page: Jaspee Red.

caractéristiques / spécifications techniques

• Product type: Traditional flat roof tile
• Dimensions (mm): a = 466; b = 260; c = 55
• Dimensions (in): a = 18.34”; b = 10.24”; c = 2.16”
• Pieces per m2: 11 (theoretical value; should be re-calculated on site)
• Weight per piece: 3,600 g / 7.93 lbs
• Longitudinal fit: 403 mm (±5 mm) / 15.86” (±0.2”)
• Transversal fit: 225 mm (±1 mm) / 8.85” (±0.04”)
• Units per pallet: 240 (packaging also available in pallets of 180 and 240 units)
• Weight per pallet: 864 kg / 1904.79 lbs
• Laying patterns: Straight or broken bond
• Key benefits: double interlocking for watertightness, ease and speed of fixation, cost reduction due to large format, high breakage resistance
