Curved roof tile

barrelclaysmall

Description

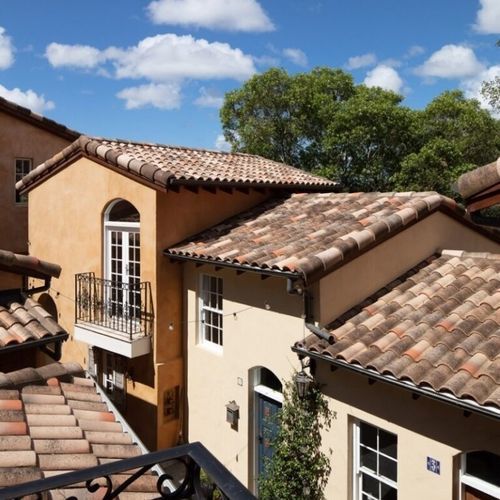

Traditionally, this 2-piece tile, also referred to as Mission or barrel tile, has been widely used across Europe and in Spanish Colonial architecture. It is currently specified both for new roofs because of its aesthetic range and for the restoration of historic roofs affected by natural weathering.
Paja finish is available for T5, T4, T1 and T2 roof tiles.

Data sheet
Columns: T5 Red clay | T5 White clay | T45 Red clay | T4 Red clay | T4 White Clay | T40 Red clay | TT5 Red clay
Dimensions (A / B / C):
T5 Red clay — A 500 mm / 19.68" • B 210 mm / 8.66" • C 170 mm / 6.70"
T5 White clay — A 500 mm / 19.68" • B 220 mm / 8.66" • C 170 mm / 6.70"
T45 Red clay — A 450 mm / 17.7" • B 200 mm / 7.87" • C 160 mm / 6.30"
T4 Red clay — A 408 mm / 16.06" • B 180 mm / 7.10" • C 140 mm / 5.51"
T4 White Clay — A 408 mm / 16.06" • B 180 mm / 7.10" • C 140 mm / 5.51"
T40 Red clay — A 408 mm / 15.75" • B 150 mm / 5.91" • C 116 mm / 4.57"
TT5 Red clay — A 500 mm / 19.68" • B 205 mm / 8.10" • C 165 mm / 6.50"
Pieces per m2 / sq:
T5 Red clay — Depending on overlapping /162
T5 White clay — Depending on overlapping /162
T45 Red clay — 22.7 / 244.3
T4 Red clay — 28 / 301
T4 White Clay — 28 / 301
T40 Red clay — 34 / 366
TT5 Red clay — 10 / 83
Pieces per lm:
T5 Red clay — 2.4; T5 White clay — 2.4; T45 Red clay — 2.7; T4 Red clay — 3; T4 White Clay — 3; T40 Red clay — 4; TT5 Red clay — 2.4
Weight per piece:
T5 Red clay — 2.55 kg / 5.62 lbs
T5 White clay — 2.10 kg / 4.63 lbs
T45 Red clay — 1.95 kg / 4.30 lbs
T4 Red clay — 1.60 kg / 3.53 lbs
T4 White Clay — 1.60 kg / 3.53 lbs
T40 Red clay — 1.35 kg / 3 lbs
TT5 Red clay — 2.80 kg / 6.17 lbs
Pieces per pallet:
T5 Red clay — 270; T5 White clay — 300; T45 Red clay — 550; T4 Red clay — 720; T4 White Clay — 624; T40 Red clay — 728; TT5 Red clay — 160
Weight per pallet:
T5 Red clay — 689 kg / 1519 lbs; T5 White clay — 630 kg / 1389 lbs; T45 Red clay — 1073 kg / 2366 lbs; T4 Red clay — 1152 kg / 2540 lbs; T4 White Clay — 983 kg / 2167 lbs; T40 Red clay — 1208 kg / 2663 lbs; TT5 Red clay — 448 kg / 988 lbs

Features

• HIGH WATER IMPERMEABILITY — Selected quality clays and high-temperature firing deliver very low water absorption.
• GREAT VERSATILITY — Suitable for both restoration of emblematic buildings and contemporary new construction, offering a refined finish.
• COLOURS AND TEXTURES — Wide range of colours and textures enabling accurate imitation of aged tiles while providing the reliability of modern manufacture.
• HIGHER RESISTANCE — Clay composition and precise forming provide mechanical performance above standard requirements.

Colour range (selected examples)

• T5J / TT5J JASPEE RED
• T5MI (Milenium)
• T5M / T40M / T4M BROWN
• T5H / TT5H / T40H HISPANIA
• T5CS / T4CS Castell
• T5P PAJA

Technical specifications

• Product type: 2-piece curved roof tile (Mission / barrel type) used for new construction and historic roof restoration.
• Available finishes: Paja finish available for T5, T4, T1 and T2 roof tiles.
• Dimensions per model: see Data sheet block (A / B / C in mm and inches for each variant).
• Pieces per m2 and per linear metre: values provided per variant in Data sheet block.
• Weight per piece and per pallet: values provided per variant in Data sheet block.
• Manufacturing tolerance: approx. ±2% on tile dimensions.
• Recommended overlapping examples: 70 mm (2.75"), 100 mm (3.93"), 150 mm (5.9").
• Certificates & compliance: product-related certificates and technical files available (product datasheets, CE/NOA references shown on product page).
