Curved roof tile

barrelclaysmall

Description

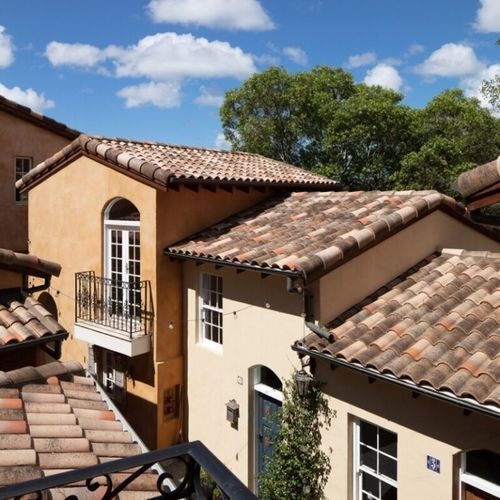

Traditional two-piece curved roof tile (also called Mission or barrel tile) widely used in European and Spanish‑colonial architecture. Suited for new construction and for the restoration of historic roofs where the aesthetic of canal tiles is required. The Red finish is available across all Curved formats.

Features

• High water impermeability: Selected clays and high‑temperature firing ensure very low water absorption.
• Versatility: Suitable for both renovation/restoration of emblematic buildings and for contemporary constructions, providing a consistent finish.
• Colours and textures: Multiple colours and textures enable accurate reproduction of aged tile aesthetics with the performance of modern tiles.
• Mechanical resistance: Clay composition and precise design offer bending resistance above standard requirements.

Data sheet
Formats: T5 Red clay | T5 White clay | T45 Red clay | T4 Red clay | T4 White clay | T40 Red clay | TT5 Red clay
Dimensions* (A): 500 mm / 19.68" | 500 mm / 19.68" | 450 mm / 17.7" | 408 mm / 16.06" | 408 mm / 16.06" | 408 mm / 15.75" | 500 mm / 19.68"
B: 210 mm / 8.27" | 220 mm / 8.66" | 200 mm / 7.87" | 180 mm / 7.10" | 180 mm / 7.10" | 150 mm / 5.91" | 205 mm / 8.10"
C: 170 mm / 6.70" | 170 mm / 6.70" | 160 mm / 6.30" | 140 mm / 5.51" | 140 mm / 5.51" | 116 mm / 4.57" | 165 mm / 6.50"
Pieces per m2 / sq: Depending on overlapping /162 | Depending on overlapping /162 | 22.7 / 244.3 | 28 / 301 | 28 / 301 | 34 / 366 | 10 / 83
Pieces per lm: 2.4 | 2.4 | 2.7 | 3 | 3 | 4 | 2.4
Weight per piece: 2.55 kg / 5.62 lbs | 2.10 kg / 4.63 lbs | 1.95 kg / 4.30 lbs | 1.60 kg / 3.53 lbs | 1.60 kg / 3.53 lbs | 1.35 kg / 3 lbs | 2.80 kg / 6.17 lbs
Pieces per pallet: 270 | 300 | 550 | 720 | 624 | 728 | 160
Weight per pallet: 689 kg / 1519 lbs | 630 kg / 1389 lbs | 1073 kg / 2366 lbs | 1152 kg / 2540 lbs | 983 kg / 2167 lbs | 1208 kg / 2663 lbs | 448 kg / 988 lbs
*Tile dimensions allow a tolerance of approximately 2%. **Overlapping examples: 70 mm / 2.75" (18 pieces/m2); 100 mm / 3.93" (18.9 pieces/m2); 150 mm / 5.9" (20 pieces/m2).

Technical specifications

• Product type: Traditional two-piece curved (Mission / barrel) roof tile.
• Colour shown: Red (available for all Curved formats).
• Available formats: T5 (Red & White clay), T45 (Red), T4 (Red & White), T40 (Red), TT5 (Red).
• Key dimensions (format-dependent): A 408–500 mm; B 150–220 mm; C 116–170 mm.
• Coverage and usage: Pieces per m² and per linear metre vary by format and overlapping; refer to data sheet.
• Weights: Piece weight approx. 1.35–2.80 kg; pallet weights shown per format in data sheet.
• Packaging: Pieces per pallet reported per format (see data sheet).
