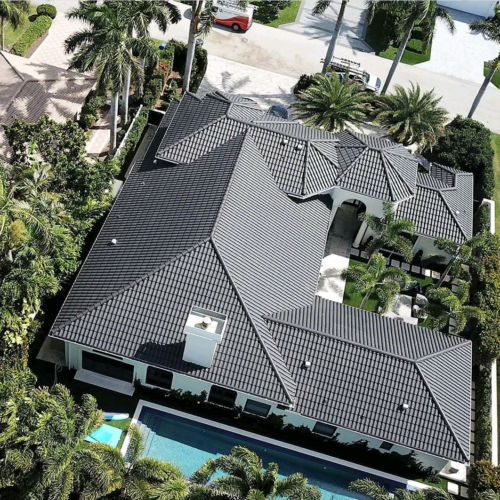

Curved roof tile MIXED SLATE

interlockingMarseillesclay

Product description
A double‑curved clay "S" profile roof tile combining design and functionality to create easy‑to‑install roofs with the characteristic Mediterranean appearance.

Data sheet
Dimensions*: A: 470 mm (18.5 in)
B: 286 mm (11.26 in)
C: 75 mm (2.95 in)
Pieces per m2: 10.5
Weight per piece: 3,850 g / 8.49 lbs
Longitudinal fit**: 396 mm (+7; -4 mm) (15.59 in (+0.27; -0.16 in))
Transversal fit**: 230 mm (±3 mm) (9.05 in (±0.11 in))
Units per pallet: 180 / 240
Weight per pallet: 693 kg / 924 kg
Laying: Straight bond

Features

• DOUBLE CURVATURE — Double‑curved profile provides the aesthetic of Mediterranean/Arab roofs while enabling straightforward installation.
• DOUBLE INTERLOCKING — Horizontal and vertical interlocks improve watertightness and overall roof impermeability.
• WIDE COLOR RANGE — Available in a wide palette of colors and complementary elements to suit new and existing roofs.
• IMPROVED BREAKAGE RESISTANCE — Clay composition and pressing process deliver higher flexural resistance than standard tiles.

Color range (examples)

• TGP / TPP PAJA
• TGPN SLATE
• TGR ROJO
• TGV GALIA
• TGBO BOURGOGNE
• TGCS CASTELL
• TGE / TPE FLAMED PAJA
• TGH / TPH HISPANIA
• TGI AITANA
• TGL LUCENTUM
• TGMI MILENIUM
• TGO TOSSAL
• TGJ / TPJ JASPEE RED
• Mixed brown roof tile

Additional notes
During manufacturing, handling or transport, slight surface friction can occur between glazed/decorated tiles; this does not affect tile structure or quality. Color variations within a batch (intentionally produced for aesthetic reasons) are permissible; minor color differences for single‑colour tiles due to the ceramic process are also accepted.

Technical specifications

• Brand: La Escandella
• Model / Series: Mixta (Grand Sud)
• Dimensions (A × B × C): 470 mm × 286 mm × 75 mm
• Pieces per m2: 10.5
• Weight per piece: 3,850 g
• Longitudinal fit: 396 mm (+7; -4 mm)
• Transversal fit: 230 mm (±3 mm)
• Units per pallet: 180 / 240
• Weight per pallet: 693 kg or 924 kg (depending on pallet configuration)
• Laying: Straight bond
• Key properties: double curvature, double interlocking (horizontal & vertical), wide color range, improved breakage resistance
• Conformity: compliant with NF EN 1304 (as indicated on the product sheet)
