Rectangular roof tile H-SELECTION INNOVA

ceramicsmallred

Description

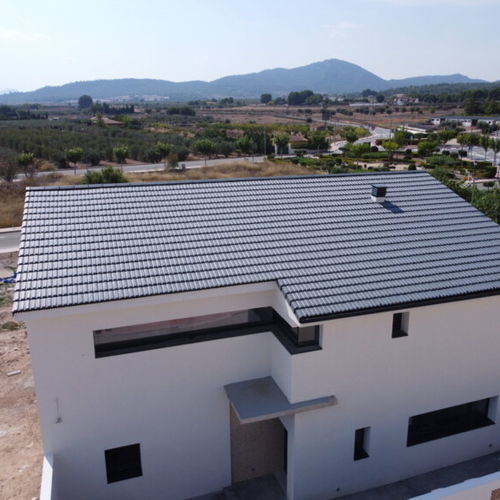

Innovation and functionality at the forefront of design. Installed alone or combined with Vienna tile, it creates roofs with expressive colour and character.

Data sheet
Innova roof tile
Dimensions*: A: 460 mm / 18.11 in; B: 255 mm / 10.04 in; C: 30 mm / 1.18 in
Pieces/m2 / sq: 11.5 / 105
Weight per piece: 3,400 g / 7.5 lbs
Longitudinal fit**: 396 mm (+5 mm / -75 mm) / 15.6 in (+0.19 in; -2.95 in)
Transversal fit**: 214 mm (±1 mm) / 8.42 in (±0.04 in)
Units per pallet: 216 / 288
Weight per pallet: 734 kg / 1,618.2 lbs (216 pieces); 979 kg / 1,757.1 lbs (288 pieces)
Laying: Straight / broken bond
*The tile dimensions indicated in this chart allow a tolerance of approximately +/-2%
**Theoretical value: this should be re-calculated on site with the tiles that are to be used.

Features

• Excellent flatness: Individual curing of each tile on the H support provides excellent flatness with no contact marks.
• High definition on each piece: Manufactured with gypsum moulds to deliver a finer texture and precise definition.
• Low absorption: Improved resistance to frost and mold formation.
• Lifetime warranty: 100 years warranty available for H-Selection tiles.

Color range

• TNRK RED
• TNMK BROWN
• TNPK SLATE
• TNYK GALAXY
• TNRRK RUSTIC RED
• TNXK GREY

Certificates & Notes

• CE marking and product-specific certificates available.
• Certificate of 100 years warranty available.
• NF FP - Valid for broken bond laying.
• Color variations within one batch, affecting the whole batch and produced for aesthetic reasons, are permissible. For single-colour tiles, variations due to the ceramic process are accepted. It is advised not to mix tiles from different batches on the same roof section.

Technical characteristics / specifications

• Model: Innova
• Dimensions (A x B x C): 460 mm x 255 mm x 30 mm (18.11 in x 10.04 in x 1.18 in)
• Pieces per m2 / sq: 11.5 / 105
• Weight per piece: 3,400 g / 7.5 lbs
• Longitudinal fit: 396 mm (+5 mm / -75 mm)
• Transversal fit: 214 mm (±1 mm)
• Units per pallet: 216 / 288
• Weight per pallet: 734 kg (216 pcs) / 979 kg (288 pcs)
• Laying: Straight / broken bond
