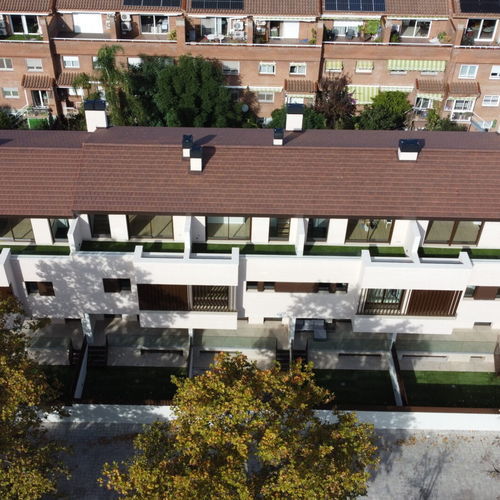

Rectangular roof tile H-SELECTION INNOVA

ceramicsmallred

Product summary
Contemporary ceramic roof tile designed for architectural coverings. Suitable for standalone laying or combined with Vienna tiles to create expressive roofs with varied colors and textures.

Data sheet
Innova roof tile
Dimensions*: A 460 mm / 18.11" — B 255 mm / 10.04" — C 30 mm / 1.18"
Tiles per m² / sq: 11.5 / 105
Weight per tile: 3,400 g / 7.5 lbs
Longitudinal fit**: 396 mm (+5 mm / -75 mm) / 15.6" (+0.19"; -2.95")
Transversal fit**: 214 mm (±1 mm) / 8.42" (±0.04")
Units per pallet: 216 or 288
Weight per pallet: 734 kg (216 pcs) / 979 kg (288 pcs)
Laying: Straight or broken bond
*Tile dimensions admit an approximate tolerance of ±2%.
**Theoretical value: recalculate on site with the tiles to be used.

Features

• Excellent flatness — Individual curing on H support prevents contact marks and ensures uniform flatness.
• High-definition finish — Gypsum moulds give a finer texture and precise definition on each piece.
• Low water absorption — Improved resistance to frost and mould formation.
• 100-year warranty — Manufacturer warranty covering product durability and manufacturing quality.

Color range

• TNRK RED
• TNMK BROWN
• TNPK SLATE
• TNYK GALAXY
• TNRRK RUSTIC RED
• TNXK GREY

Certificates & notes
Compliant with NF EN 1304. NF FP — valid for broken bond laying. Color variations within a single production batch are permissible for aesthetic reasons; for single-color tiles, variations due to the ceramic process are accepted. It is recommended not to mix tiles from different production batches on the same roof section.

Technical specifications

• Brand: La Escandella
• Model: Innova (H-Selection range)
• Dimensions A × B × C: 460 × 255 × 30 mm
• Tiles per m²: 11.5 (approx.)
• Tiles per sq: 105 (approx.)
• Weight per tile: 3,400 g / 7.5 lbs
• Longitudinal fit (theoretical): 396 mm (+5 / -75 mm)
• Transversal fit (theoretical): 214 mm (±1 mm)
• Units per pallet: 216 or 288
• Weight per pallet: 734 kg (216 pcs) / 979 kg (288 pcs)
• Laying options: Straight or broken bond
• Surface/texture: High definition from gypsum moulds
• Performance: Low water absorption; higher resistance to frost and mould
• Warranty: 100 years (manufacturer statement)
