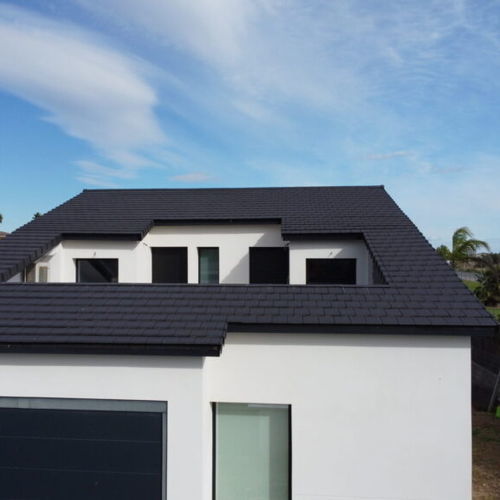

Flat roof tile H-SELECTION PLANUM

claysmallred

Description
Traditional material origin combined with contemporary design. Planum roof tile is specified for projects requiring the CROSS BOND (broken bond) laying method, offering large format dimensions with controlled weight for efficient installation.

Data sheet
Planum Roof tile
A: 441 mm / 17.36"
B: 278 mm / 10.94"
C: 32 mm / 1.26"
Pieces / m2: 11 / Pieces / sq. ft.: 106
Weight per piece: 3.5 kg / 7.71 lbs
Longitudinal fit**: 370 mm (+6 / -44 mm) / 14.57” (+0.24”; -1.73”)
Transversal fit**: 237 mm / 9.33"
Units per pallet: 240 / 320
Weight per pallet: 840 kg / 1120 kg (1,851.94 lbs / 2,469.2 lbs)
Laying: Broken bond (CROSS BOND)
*Tile dimensions admit a tolerance of approximately ±2%
**Theoretical value: re-calculation on site with the tiles to be used is recommended.

Features

• Individual curing on H-support to ensure flatness and avoid contact marks.
• High definition on each piece thanks to gypsum moulds, providing a fine surface texture.
• Low water absorption, increasing resistance to frost and mould formation.
• Warranty: 100 years (manufacturer's statement).

Colour range

• TIRK RED
• TIMK BROWN
• TIYK GALAXY
• TIXK GREY
• TIBSK BLACKSTONE
• TIJK JASPEE RED
• TIRRK RUSTIC RED
• TICEK PEPPER
• TIPK SLATE

Available documents

• Technical Catalogue (Planum_EN_0425.pdf)
• Product Sheets (TI-LAE_ENG.pdf)
• Design file / Technical file (Detalles-Constructivos-Planum.pdf)
• Marcado CE (Marcado-CE-DPD_ING_26.pdf)
• CE certificate (TI_CE034MARCAN001769_IN_2022-06-23English.pdf)

Technical specifications

• Model: Planum
• Series: H-Selection
• Dimensions (A x B x C): 441 mm x 278 mm x 32 mm
• Pieces per m²: 11
• Pieces per sq. ft: 106
• Weight per piece: 3.5 kg
• Longitudinal fit: 370 mm (+6 / -44 mm)
• Transversal fit: 237 mm
• Units per pallet: 240 / 320
• Weight per pallet: 840 kg / 1120 kg
• Recommended laying method: Broken bond (CROSS BOND)
• Tolerances: dimensions ±2% (normative values)
