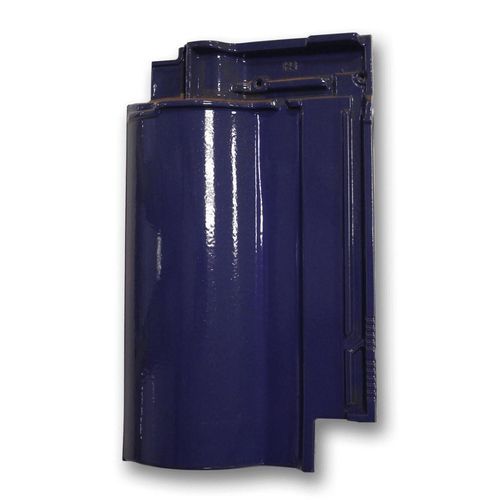

Barrel roof tile H-SELECTION SELECTUM

ceramicredblue

Product description
Selectum is a traditional roof tile manufactured with klinker quality and a variable laying step. It incorporates the FlexiLock system to simplify installation and ensure a precise fit on different roof geometries. The number of tiles per square meter ranges from 11 to 14 depending on laying parameters.

Data sheet
Selectum Roof tile
Dimensions*: A 468 mm / 18.4"
B 280 mm / 11"
C 75 mm / 3"
Pieces / m²: 11 - 14
Weight per piece: 3,500 g / 7.71 lbs
Longitudinal fit**: 348 - 383 mm / 13.7 - 15.07"
Transversal fit**: 206 - 231 mm / 8.1 - 9.09"
Units per pallet: 240 / 320
Weight per pallet: 840 kg / 1,120 kg // 1851.88 lbs / 2469.17 lbs
Laying: Straight bond
*The tile dimensions indicated admit a tolerance of approximately +/-2%
**Theoretical value: recalculate on site with the tiles to be used.

Features

• Excellent flatness: Individual curing of each tile on H-support ensures high flatness with no contact marks.
• High definition: Manufactured with gypsum moulds for a finer texture and precise profile.
• Low absorption (klinker): Increased resistance to frost and mould formation.
• Lifetime warranty: 100-year warranty reflecting manufacturing durability.

Color range

• Provence (TSPRK)
• Slate (TSPK)
• Rustic Red (TSRRK)
• Cognac (TSEC)
• Light Blue (TSEZ)
• Dark Blue (TSEA)
• Light Green (TSEV)
• Dark Green (TSEO)
• Rustic Cognac (TSECR)
• Carmine (TSEG)
• Black (TSEN)
• Red (TSRK)
• Brown (TSMK)

Technical specifications

• Model: Selectum
• Dimensions A × B × C: 468 mm × 280 mm × 75 mm (18.4" × 11" × 3")
• Tiles per m²: 11 - 14
• Weight per piece: 3,500 g (7.71 lbs)
• Longitudinal fit: 348 - 383 mm (13.7 - 15.07")
• Transversal fit: 206 - 231 mm (8.1 - 9.09")
• Units per pallet: 240 / 320
• Weight per pallet: 840 kg / 1,120 kg (1851.88 lbs / 2469.17 lbs)
• Laying pattern: Straight bond
• Dimensional tolerance: approximately +/-2%
