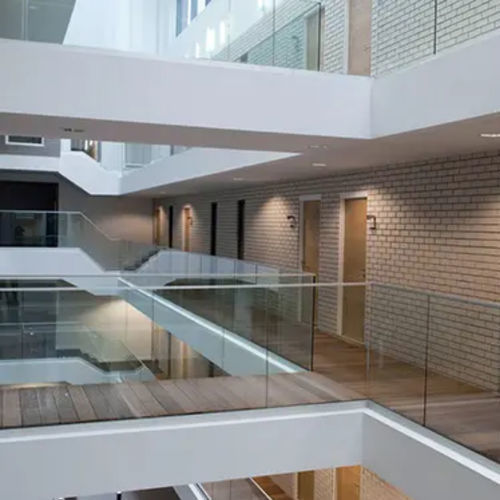

Glass railing DEFENDER series

paneloutdoorfor patio

Presentation
The DEFENDER range designates frameless glass balustrade systems without vertical posts. In these non-traditional systems validated by Avis Technique 2.1/21-1812_V1, only the bottom edge of the glass is embedded into an aluminium profile fixed onto a concrete support. For each family, the supplied profiles allow installation of straight balustrades and can also be used as stair stringer applications.

Objective
"A protective barrier against falls, designed to prevent danger for all users of the accessible and adjacent areas under protection"
This installation aims to prevent the risk of falling from height in any public or occupiable space, according to local requirements and standards (static/dynamic tests and calculations).

Applications

• Balconies, terraces, roof terraces, mezzanines
• Hotels
• Offices, entrance lobbies
• Childcare facilities: nurseries, schools
• Shopping centers (prevention of falling objects to lower levels)
• Airports, railway stations, etc.
• Pool edges, windbreaks for panoramic or seaside restaurants
• Stands, stadiums, performance halls (DF1212LM system, slab-mounted)

Dimensions and glazing
For a balustrade composed of several adjacent panels, the gap between glass panels must be between 5 and 110 mm. The minimum width of glazed panels is 500 mm.
Glass thicknesses compatible with DEFENDER systems can be:
• 17.52 mm (composition 88.4) for DF88PICO, DF88LM, DF88DK, DF88MS and DF88FR systems
• 21.52 mm (composition 10 10.4) for DF1010LM, DF1010DK, DF1010MS, DF1010FR and DF1010SP systems
• 25.52 mm (composition 12 12.4) for DF1212LM and DF1212MS systems

Aesthetics and approved glass
Wide range of glass types validated by the Avis Technique to meet varied aesthetics: PLANICLEAR® clear glass, DIAMANT® extra-clear for increased transparency, STADIP® COLOR transparent and colored laminated glass. SECURIPOINT® panels are available: tempered, Heat Soak tested (HST) and assembled as laminated glass, compliant with EN 14449 and EN 14179, with visible SECURIPOINT® marking after installation.

Installation requirements
Installation must follow the recommendations of Avis Technique 2.1/21-1812_V1. Performance and allowable glass types may vary depending on local regulations and national prescriptions.

Advantages

• TRANSPARENCY: absence of vertical posts for unobstructed views
• AESTHETICS: clean, minimal visible structure
• SAFETY: complete systems validated by an Avis Technique, designed to reduce the risk of falling objects

Technical description of the systems (extracts)
DEFENDER LM

• Patented glass clamping and adjustment system
• POM clamps and aluminium pressure pieces with A4 stainless steel tightening screws
• Quick glass alignment with hex key or screwdriver
• High-strength honeycomb aluminium profile
• Compact dimensions: b = 72/80 mm x h = 120 mm
• Supplied pre-drilled with 200 mm center spacing
• Without cover, the load-bearing profile is anodized (not intended for raw finish)
• Anodizing thickness: 20 microns

DEFENDER MS

• Patented glass fixing system
• POM clamps, aluminium or Grivory® pressure pieces and A4 stainless steel screws
• Continuous gasket to maximize contact area and performance
• Simple and fast one-sided installation (hex key or screwdriver)
• Honeycomb aluminium profile for high performance
• Compact dimensions: b = 72/80 mm x h = 120 mm
• Supplied pre-drilled with 200 mm center spacing
• Without cover, the load-bearing profile is anodized (not intended for raw finish)
• Anodizing thickness: 20 microns

Glazing safety
Use of tempered laminated glass panels treated by Heat Soak (HST) and marked SECURIPOINT®, compliant with EN 14449 and EN 14179, ensuring high resistance and enhanced safety.

Characteristics / technical specifications

• Trade name: DEFENDER
• Validation: Avis Technique 2.1/21-1812_V1
• Applications: indoor and outdoor, private buildings and public access buildings
• Gap between glass panels: 5 to 110 mm
• Minimum panel width: 500 mm
• Glass thicknesses by system: 17.52 mm / 21.52 mm / 25.52 mm (depending on DF88…, DF1010…, DF1212… references)
• Profiles: honeycomb aluminium (b = 72/80 mm x h = 120 mm)
• Fixings: POM clamps, aluminium or Grivory® pressure pieces, A4 stainless steel screws
• Pre-drilled center spacing: 200 mm
• Load-bearing profile anodizing: 20 microns
• Safety glazing: tempered laminated HST, SECURIPOINT® marking, compliant with EN 14449 and EN 14179
• Mandatory compliance with the installation recommendations of the Avis Technique
