Solar control glass panel VISION-LITE®

insulatingacousticlaminated

Description
VISION-LITE® is a high-performance anti-reflective glass that provides exceptional transparency and optimal visibility of objects without distracting reflections. Using a metallic oxide coating deposited by magnetron technology onto a DIAMANT® extra-clear substrate, it significantly reduces surface light reflection for faithful color and detail rendering. VISION-LITE® couples visual performance with environmental credentials (Cradle to Cradle® certified and supplied with a verified EPD).

Applications

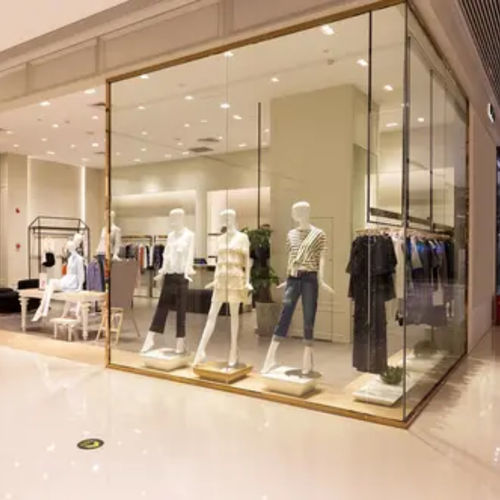

• Shopfronts and display windows
• Restaurant glazed façades
• Control rooms and towers (airports, ports) or broadcast galleries
• Spectator separation glazing in stadiums
• Museum display cases and retail showcases
• Interior partitions in hospitals or TV studios
• Protection of digital signage and wayfinding screens (stations, airports)
• Operator cabins for construction and agricultural machinery (cranes, tractors)

Advantages

• Optimal visibility: VISION-LITE® delivers up to 8 times lower reflection than standard glass, providing exceptional transparency and reflection-free viewing.
• Accurate color rendering: the DIAMANT® extra-clear substrate combined with the anti-reflective treatment ensures excellent contrast and precise color reproduction, revealing fine details of displayed objects.
• Large formats: available in large sizes suited to shopfronts, lobbies and large glazed façades.
• Security: available laminated (e.g. STADIP® PROTECT) to combine transparency with intrusion resistance and partial UV filtering.
• Acoustics: when combined with optimized laminated glass (e.g. STADIP® SILENCE), VISION-LITE® contributes to acoustic comfort while maintaining high visibility.
• Cost reduction: in insulating double glazing (assembled with ECLAZ®) competitive thermal performance (e.g. Ug = 1.1 W/m2.K) can be achieved while preserving transparency; the very low reflection can also reduce the need for sunshades and artificial lighting in displays.

Performances
Range
VISION-LITE® is offered in several compositions and sizes to cover a wide range of applications.
Semi VISION-LITE®

• Monolithic glass on DIAMANT® extra-clear substrate
• Anti-reflective coating applied on one face
• Available thicknesses: 4 mm, 6 mm, 8 mm and 10 mm in PLF size (6000 x 3210 mm)

VISION-LITE® STADIP® (on request)

• Laminated glass on DIAMANT® extra-clear substrate
• Anti-reflective coating applied on both outer faces
• Available compositions (examples): 44.2, 64.2, 66.2 in PLF size (6000 x 3210 mm)

Table — Single glazing
Type | Visible light transmission (%) | Light reflection (%)
DIAMANT®, 8 mm | 91 | 8
VISION-LITE®, 44.2 | 96 | 1
Table — Double glazing (with ECLAZ® on face 3)
Type | Visible light transmission (%) | Light reflection (%) | Ug coefficient (W/(m².K))
DIAMANT®, 44.2 (16) 44.2 | 83 | 11 | 1.1
VISION-LITE®, 44.2 | 96 | 1 | 1.1
Values given according to standards EN 410 and EN 673, calculated with 90% argon fill.

Technical specifications

• Substrate: DIAMANT® extra-clear glass
• Anti-reflective treatment: metallic oxide layer deposited by magnetron (on one or two faces depending on version)
• Very low residual reflection (around 1% for double-sided anti-reflective treatment)
• Monolithic availabilities: 4 mm, 6 mm, 8 mm, 10 mm (PLF 6000 x 3210 mm)
• Laminated versions: compositions 44.2, 64.2, 66.2 (PLF 6000 x 3210 mm)
• Can be assembled in double glazing with low-emissivity and/or solar control layers (e.g. ECLAZ®) — example Ug = 1.1 W/m².K
• VISION-LITE® II: tempered anti-reflective glass, specifically designed for refrigerated furniture doors and display cabinets
• Certifications and environment: Cradle to Cradle® certified and supplied with an Environmental Product Declaration (EPD)
• Usage recommendations: follow installation guidelines to preserve optical performance; for horizontal interior applications (e.g. museum showcases) take precautions to limit scratches and fingerprints; for exterior applications validate visual appearance with a sample or prototype.
