Safety glass panel VARIO®

insulatingdouble-glazedtransparent

Description
VARIO® is an insulating double glazing unit fitted with metal inserts integrated into the sealing barrier during manufacture. These inserts allow the product to be installed directly on a façade or rooflight using appropriate fixing systems. The outer lite of VARIO glazing is retained on the façade by bonding to the insulating glazing unit's sealing barrier.

Applications

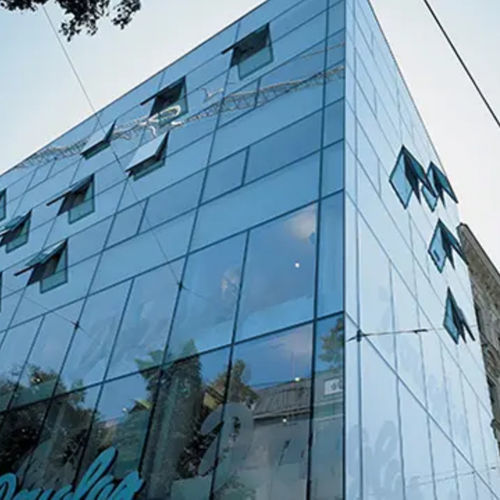

• Façades, curtain walls
• Roofs or rooflights

Benefits and range
The inserts receive discreet mechanical fastenings (clamps), giving glass façades a smooth, uniform appearance comparable to exterior-bonded glazing.

Range
The VARIO® insulating glazing units are offered in four configurations:

VARIO® U ADHESIVE and VARIO® U FLOTTANT
Glazing fitted with continuous metal inserts bonded against the inner glass or floating in the middle of the sealing barrier, located:

• either on the two vertical heights for a continuous band installation (the rebated edge of the horizontal sides helps retain the outer glass in case of detachment);
• or on all four sides (in this case an additional retention device must be provided to secure the outer glass).

VARIO® II FLOTTANT
Glazing fitted with discrete floating metal inserts in the middle of the sealing barrier, located:

• either on the two vertical heights for a continuous band installation (rebated edge of the horizontal sides ensures retention in case of detachment);
• or on all four sides with a continuous insert on the upper edge and discrete inserts on the other three sides (in this case provide an additional retention device to secure the outer glass in case of detachment).

VARIO® DZ FLOTTANT
Glazing equipped on all four sides with floating metal inserts in the middle of the sealing barrier, with a continuous insert on the upper edge and discrete inserts with extensions on the other three sides. The extensions engage in a specific machining in the thickness of the outer glass edge; these pieces are invisible from the outside and provide additional safety: in case of detachment of the outer glass, all loads are taken by the discrete inserts with extensions and the outer glass is retained.

Compatible glass range
The different variants allow the use of a wide selection of façade glass types. Maximum dimensions: 2,500 x 5,000 mm.

Regulatory information
VARIO® glazing benefits from a Technical Assessment (Avis Technique) (since January 2022) and complies with standard EN 1279.

Characteristics / technical specifications

• Type: insulating glazing (double glazing) with metal inserts integrated into the sealing barrier.
• Fixing: discreet mechanical fastenings (clamps) integrated into the inserts.
• External fixing method: bonding of the outer glass to the insulating glazing unit's sealing barrier.
• Configurations: VARIO® U ADHESIVE, VARIO® U FLOTTANT, VARIO® II FLOTTANT, VARIO® DZ FLOTTANT.
• Insert options: continuous or discrete inserts, positioned on two vertical heights or on four sides, and discrete inserts with extensions (additional safety).
• Typical applications: façades, curtain walls, roofs, rooflights.
• Maximum dimensions: 2,500 x 5,000 mm.
• Standards and compliance: Technical Assessment (January 2022), compliant with EN 1279.
