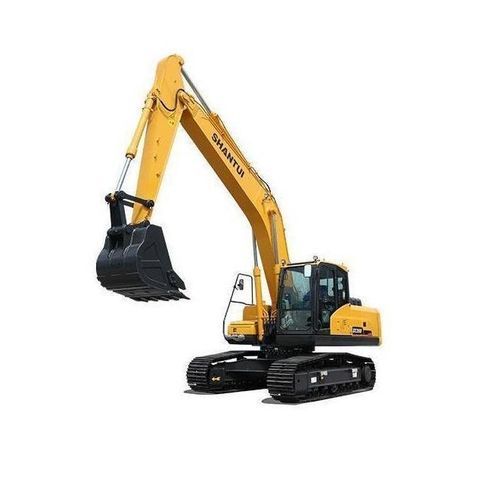

Large excavator SE205-9W2crawlercompactstandard
Add to favorites
Compare this product
Characteristics
- Product line
- large
- Locomotion
- crawler
- Type
- standard, compact
- Other characteristics.
- diesel, for construction, loading
- Operating weight
21,500 kg
(47,399.4 lb)- Engine power
123 kW
(167.2 hp)- Bucket capacity
0.9 m³
(31.783 ft³)
Description
Overview
Key features
Technical specifications
- The SE205-9W2 hydraulic excavator, manufactured by Shantui, is engineered to improve operational efficiency through optimized hydraulic components and an integrated electronic control system that enhances action coordination and stability.
Key features
- Hydraulic and control system — Uses world-class hydraulic components with an optimized spool structure and regeneration channels to reduce pressure loss and improve coordination; the proprietary electronic control unit provides stable, well-coordinated machine responses.
- Maintenance and operator comfort — Service points such as the hood, oil filter and fuel filter are positioned for easy access; the cab offers wide visibility, a spacious layout and an intuitive intelligent electronic control interface.
- Adaptability and attachments — Booms and sticks use a large-section box structure with reinforced stress points to withstand harsh conditions; multiple boom, stick and bucket configurations are available to suit varied working environments.
Technical specifications
- Model: SE205-9W2
- Operating weight: 21,500 kg
- Engine power: 123 kW / 2200 rpm
- Bucket capacity: 0.9 m³
- Overall dimensions (L×W×H): 9610 × 2800 × 3100 mm
- Bucket rod digging force: 107 kN
- Bucket digging force: 148 kN
- Rotating speed: 0–11 r/min
- Travel speed: 3.5 / 5.3 km/h
- Maximum digging height: 10,070 mm
- Maximum digging reach: 9,860 mm
- Maximum digging depth: 6,490 mm
- Emissions: China Ⅲ
