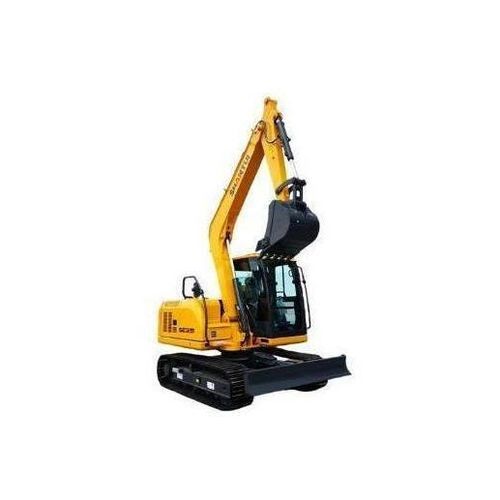

Midi excavator SE75-10W

trackedcompactdiesel

Overview
The SE75-10W compact excavator is designed for municipal landscaping, agricultural water conservancy, rural development and bridge construction. It combines a high operating weight and widened undercarriage with a 0.32 m³ bucket to deliver strong digging and lifting performance across varied and confined job sites, while maintaining operator comfort and control.

Powertrain & Hydraulics
Equipped with a Weichai WP3.2T electronic fuel-injected turbocharged engine (36.8 kW) that provides approximately 14% increased torque for improved digging power and fuel efficiency without requiring aftertreatment. The load-sensing hydraulic system ensures fast cycle times and precise controllability. Reinforced hydraulic cylinders increase digging force by about 18% compared with comparable models.

Serviceability & Durability
Large-opening engine hood and left/right side doors give generous service access for routine maintenance. The self-lubricating swing reducer and robust components reduce maintenance frequency and operating costs, improving machine uptime in demanding applications.

Parameters

• Operating weight: 7650 kg
• Engine power: 36.8 kW @ 2200 rpm (Weichai WP3.2T electronic fuel-injected turbocharged engine)
• Bucket capacity: 0.32 m³
• External dimensions (L×W×H): 6240 × 2260 × 2680 mm
• Bucket rod digging force: 38 kN
• Bucket digging force: 66 kN
• Swing speed: 10.5 r/min
• Travel speed: 2.9 / 4.6 km/h
• Maximum digging height: 7100 mm
• Maximum digging radius: 6375 mm
• Maximum digging depth: 3990 mm
• Emissions: China Stage IV
