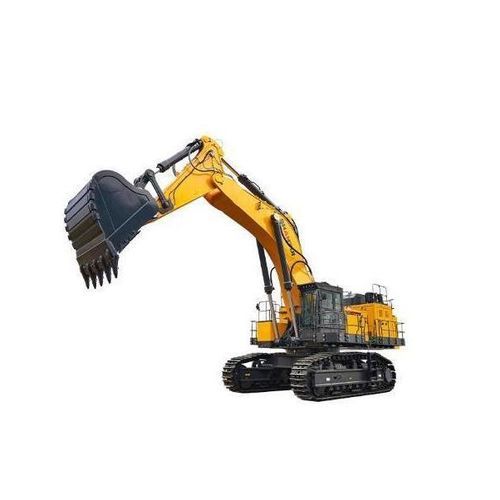

Large excavator SE1500

crawlercompactstandard

Characteristic
The SE1500 is powered by a Weichai 8M33 engine with low RPM and high torque, providing a wide, fuel-efficient operating range and reduced fuel consumption. The enlarged and widened working implement uses cast and forged key structural components to withstand heavy-duty conditions. A large bucket capacity improves cycle productivity. The machine includes an automatic lubrication system and a reverse-blow air filter to minimize manual maintenance time. Modular service access simplifies inspection and servicing of major components.

Operator interface and assistance
The 10.1-inch smart touchscreen provides multiple operating modes and integrated assistance functions, improving operational control and visibility.

• Smart Display
• Operating Mode selection
• Smart Interaction
• Control Assistance
• One-Touch Start
• 360° panoramic camera

Parameter

• Model: SE1500
• Operating weight (kg): 150000
• Engine: Weichai 8M33 (low RPM, high torque)
• Engine power (kW / rpm): 680 / 1800
• Bucket capacity (m³): 10
• External dimensions (L*W*H, mm): 15660 * 5835 * 6490
• Bucket rod digging force (kN): 560
• Bucket digging force (kN): 630
• Rotating speed (r/min): 4.5
• Travel speed (km/h): 2.2 / 3.2
• Maximum digging height (mm): 13470
• Maximum digging distance (mm): 14060
• Maximum digging depth (mm): 7700
• Emissions: Stage III

Technical specifications

• Key structural components: cast and forged elements for the enlarged/widened working implement
• Maintenance: automatic lubrication system and reverse-blow air filter
• Serviceability: modular service access for easy maintenance of key components
• Operator aids: 10.1-inch smart touchscreen with multiple assistance functions and 360° camera
• Designed for high-capacity mining operations with 10 m³ bucket and 150000 kg operating weight
