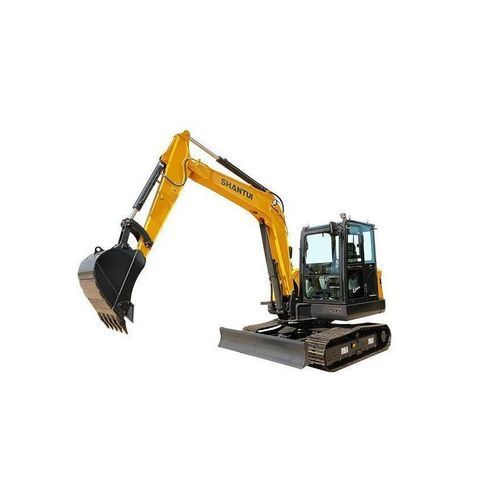

Mini excavator SE85

crawlercompactdiesel

Product type
Compact excavator

Model
SE85

Overview
The SE85 is a compact, heavy small excavator designed for excavation, leveling, crushing and lifting. It is equipped with an internationally renowned diesel engine delivering 48.9 kW at 2000 rpm and a load-sensitive, constant-power, electro-proportional hydraulic system that supplies appropriate pressure and flow based on load demand, reducing energy loss.

Key features

• Powertrain and hydraulics: high-power international engine; load-sensitive, constant-power, electro-proportional hydraulic control to minimise energy loss.
• Maintenance and operator access: fully openable engine hood with positioning mechanism; spacious engine compartment for easy maintenance; accessible washer fluid refill, air filter replacement and main power switch; diesel pre-filter located on right-side door.
• Performance and adaptability: heavy operating weight for good stability; large-diameter hydraulic cylinders for high digging force; industry-leading bucket capacity; multiple preset working modes for varied tasks.

Parameter table
Parameter | SE85
Operating weight (kg) | 8350
Engine power (kW/rpm) | 48.9/2000
Bucket capacity (m³) | 0.35
External dimensions (mm) | 6455*2306*2710
Bucket rod digging force (kN) | 45
Bucket digging force (kN) | 68
Rotating speed (r/min) | 11.5
Travel speed (km/h) | 2.9/4.4
Maximum digging height (mm) | 7175
Maximum digging distance (mm) | 6600
Maximum digging depth (mm) | 4295
Emissions (Indicated as per international standards) | EU Stage IIIA

Application cases
Used in infrastructure and construction projects; suitable for railway, mining and general civil construction applications; illustrated in application galleries.

Technical specifications

• Operating weight: 8350 kg
• Engine power: 48.9 kW @ 2000 rpm
• Bucket capacity: 0.35 m³
• External dimensions (L*W*H): 6455*2306*2710 mm
• Bucket rod digging force: 45 kN
• Bucket digging force: 68 kN
• Rotating speed: 11.5 r/min
• Travel speed: 2.9 / 4.4 km/h
• Maximum digging height: 7175 mm
• Maximum digging distance: 6600 mm
• Maximum digging depth: 4295 mm
• Emissions standard: EU Stage IIIA
