Medium excavator SW150

rubber-tireddieselfor construction

Product

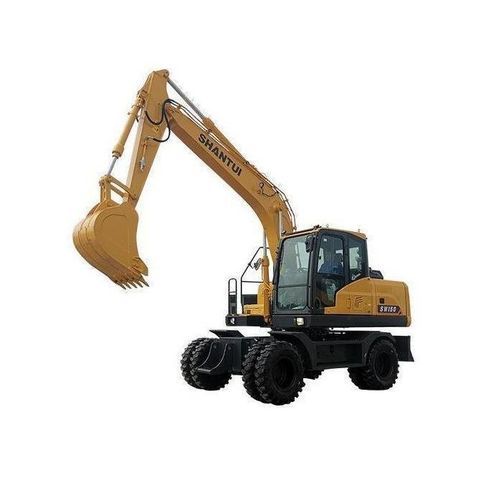

Wheel excavator SW150 designed for medium-duty earthmoving in urban, infrastructure and railway projects.

Key features

• Powertrain: Weichai engine (129 kW) combined with a Rexroth travel motor and ZF transmission to ensure reliable performance and longevity.
• Serviceability & operator comfort: engine oil and fuel filters are centrally located; hydraulic and engine filter elements share a single-compartment, one-door access layout for fast maintenance.
• Adaptability: standard hydraulic lock for the dozer blade; large-capacity brake accumulator for increased braking reserve; advanced adjustment technology and a proprietary controller matched to the machine's control logic.

Parameters (table)

• Model: SW150
• Operating weight (kg): 13500
• Engine power (kW/rpm): 129/2200
• Bucket capacity (m³): 0.6
• External dimensions (mm): 7960×2528×3220
• Bucket rod digging force (kN): 72
• Bucket digging force (kN): 102.5
• Rotating speed (r/min): 0-11.3
• Travel speed (km/h): 10/37
• Maximum digging height (mm): 8755
• Maximum digging distance (mm): 7950
• Maximum digging depth (mm): 4715
• Emissions: EU Stage IIIA

Application cases (examples)
Photographic examples and project cases illustrating use in railway construction and various international site projects, showing typical working configurations and attachments.

Technical specifications

• Operating weight (kg): 13500
• Engine power (kW/rpm): 129/2200
• Bucket capacity (m³): 0.6
• External dimensions (mm): 7960×2528×3220
• Bucket rod digging force (kN): 72
• Bucket digging force (kN): 102.5
• Rotating speed (r/min): 0-11.3
• Travel speed (km/h): 10/37
• Maximum digging height (mm): 8755
• Maximum digging distance (mm): 7950
• Maximum digging depth (mm): 4715
• Emissions: EU Stage IIIA
