Mini excavator SE58-G SR

trackedzero tail swingcompact

Overview

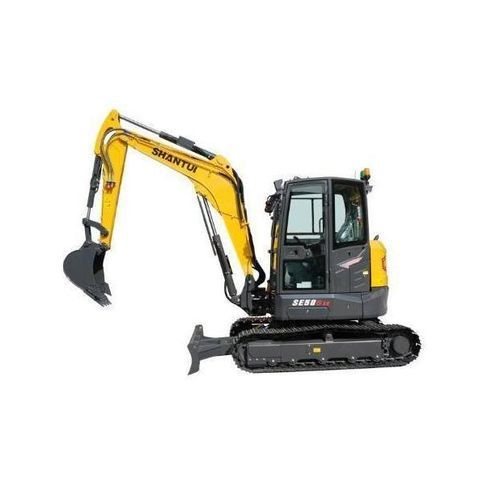

The SE58-G SR is a compact mini excavator designed for efficient operation in confined and varied job sites. It features a redesigned exterior and is equipped with a Kubota V2607 high-pressure common rail engine for lower fuel consumption and improved efficiency. The machine delivers a balanced combination of mobility and digging performance suitable for contractors and municipal fleets.

Durability and design
The machine has been validated through high-intensity, multi-condition, long-duration testing. Optimized structural reinforcement improves durability while a zero-tail-swing configuration, offset boom and floating dozer blade provide compactness and operational flexibility across landscaping, utility and civil works.

Maintenance and applications
Centralized service points and a three-piece hood simplify daily inspections and reduce downtime. Low operating costs and straightforward maintenance make the SE58-G SR suitable for municipal landscaping, agricultural water conservancy, rural construction, and highway and bridge construction.

Technical specifications

• Operating weight (kg): 5850
• Engine power (kW/rpm): 35/2200
• Bucket capacity (m³): 0.18
• External dimensions (mm): 5420*1960*2550
• Bucket rod digging force (kN): 26.9
• Bucket digging force (kN): 42.3
• Rotating speed (r/min): 10.8
• Travel speed (km/h): 4.2/2.5
• Maximum digging height (mm): 5685
• Maximum digging distance (mm): 6135
• Maximum digging depth (mm): 3640
• Emissions (as per international standards): China Stage IV
