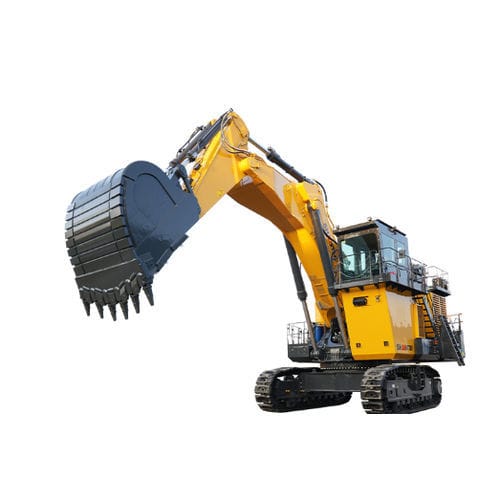

Large excavator SE2000

crawlercompactdiesel

Overview
SE2000 is a large-capacity mining excavator designed for heavy-duty open-pit and surface mining. It is equipped with a Weichai 12M33 V12 engine (900 kW @ 1800 rpm) delivering high torque at low speed. The machine integrates mature hydraulic core components and a fully electronically controlled hydraulic system to ensure stable performance, precise controllability and improved operational efficiency.

Key Features

• Powertrain & hydraulics: Matched with Weichai 12M33 V12 900 kW engine; proven core hydraulic components; fully electronically controlled hydraulic system for consistent response and higher cycle efficiency.
• Operator environment & maintenance: 10.1-inch intelligent touchscreen for real-time condition monitoring and sensor-assisted fault diagnosis; electric air-suspension seat and high-capacity air conditioning; multi-directional access platforms and channels to simplify inspection and maintenance.
• Durability & suitability for harsh conditions: Annealed construction on five main structural areas to increase reliability; high-strength steels for low-temperature operation; reinforced double-tooth crawler and thickened track shoes for abrasive mining environments.

Parameters (table)
Parameter | SE2000
Operating weight (kg) | 200000
Engine power (kW/rpm) | 900/1800
Bucket capacity (m³) | 12
External dimensions (mm) | 16834*6875*7340
Bucket rod digging force (kN) | 628
Bucket digging force (kN) | 660
Rotating speed (r/min) | 4.5
Travel speed (km/h) | 2.1/2.7
Maximum digging height (mm) | 14326
Maximum digging distance (mm) | 15309
Maximum digging depth (mm) | 8199
Emissions (Indicated as per international standards) | Tier 4

Technical specifications

• Model: SE2000
• Application: Mining excavator (open-pit/surface mining)
• Operating weight: 200000 kg
• Engine: Weichai 12M33 V12, 900 kW @ 1800 rpm
• Bucket capacity: 12 m³
• External dimensions (L*W*H): 16834*6875*7340 mm
• Bucket rod digging force: 628 kN
• Bucket digging force: 660 kN
• Rotating speed: 4.5 r/min
• Travel speed: 2.1/2.7 km/h
• Maximum digging height: 14326 mm
• Maximum digging distance: 15309 mm
• Maximum digging depth: 8199 mm
• Emissions: Tier 4
