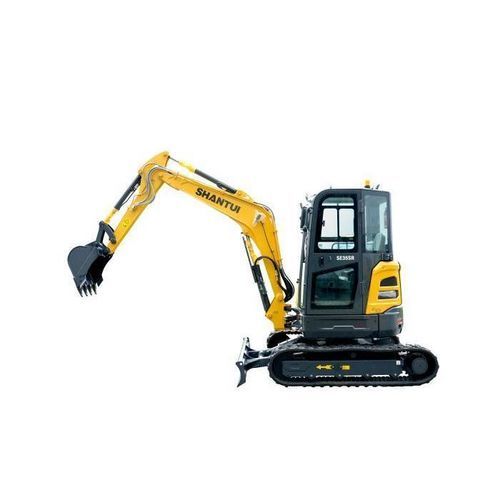

Mini excavator SE35SR

crawlerzero tail swingcompact

Product overview
Mini excavator SE35SR. Standard configuration includes zero-tail swing and boom swing functions. The machine offers multiple optional attachment hydraulic circuits to suit diverse working conditions. Operator environment features a mechanical suspension seat, a high-power cab heating (hot air) system and a 7-inch LCD touchscreen. All-hydraulic pilot control provides precise maneuverability and simplified maintenance. The machine is powered by an engine from a leading industry manufacturer. A load-sensing hydraulic control system operating at high system pressure ensures efficient operation with smooth, synchronized movements.

Key features

• Zero-tail swing and boom swing functions for easier operation in confined spaces
• Multiple optional attachment hydraulic circuits to accommodate various tools
• Mechanical suspension seat for improved operator comfort
• High-power cab heating and 7-inch LCD touchscreen for enhanced operator control
• All-hydraulic pilot controls for precise control and simplified maintenance
• Load-sensing hydraulic system with high system pressure for efficient, smooth synchronized actions

Technical parameters (table)
Parameter — SE35SR
Operating weight(kg) — 3800
Engine power(kW/rpm) — 18.2/2200
Bucket capacity(m³) — 0.12
External dimensions(mm) — 4880*1740*1880
Bucket rod digging force(kN) — 18.2
Bucket digging force(kN) — 30.4
Rotating speed(r/min) — 0-9
Travel speed(km/h) — 2.4/4.4
Maximum digging height(mm) — 4910
Maximum digging distance(mm) — 5500
Maximum digging depth(mm) — 3075
Emissions (Indicated as per international standards) — Europe Stage V

Application notes
Suitable for operations requiring a compact excavator with strong maneuverability, flexible optional attachments and compliance with Europe Stage V emissions regulations.

Technical specifications

• Operating weight: 3800 kg
• Engine power: 18.2 kW @ 2200 rpm
• Bucket capacity: 0.12 m³
• External dimensions (L*W*H): 4880*1740*1880 mm
• Bucket rod digging force: 18.2 kN
• Bucket digging force: 30.4 kN
• Rotating speed: 0-9 r/min
• Travel speed: 2.4 / 4.4 km/h
• Maximum digging height: 4910 mm
• Maximum digging distance: 5500 mm
• Maximum digging depth: 3075 mm
• Emissions: Europe Stage V
