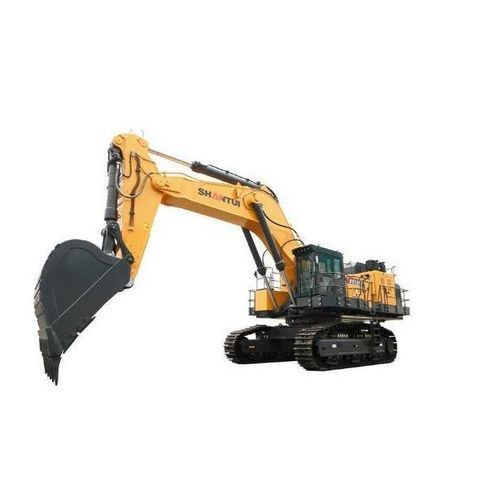

Large excavator SE1350-Gcrawlerergonomiccompact
Add to favorites
Compare this product
Characteristics
- Product line
- large
- Locomotion
- crawler
- Type
- compact, ergonomic
- Other characteristics.
- diesel, for construction, loading
- Operating weight
125,000 kg
(275,577.8 lb)- Engine power
680 kW
(924.5 hp)- Bucket capacity
8.5 m³
(300.175 ft³)
Description
Overview
Heavy-duty mining excavator engineered for continuous high-intensity operations. Equipped with a large-displacement, high-output engine featuring low vibration, enhanced cooling and extended service intervals. Electronically controlled hydraulic system optimizes digging power and reduces energy loss. Reinforced undercarriage and boom/arm structures increase durability and stability in harsh mining environments.
Cab and Electrical System
Ergonomically designed cab provides good visibility and accessible maintenance points. Integrated 360° panoramic camera system, protected wiring harnesses and robust connectors ensure electrical reliability under heavy-duty conditions. Cab layout and controls are configured for operator efficiency and long shifts.
Parameters
Model: SE1350-G
Operating weight (kg): 125000
Engine power (kW/rpm): 680/1800
Bucket capacity (m³): 8.5
External dimensions (mm): 14845 × 5385 × 6130
Bucket rod digging force (kN): 610
Bucket digging force (kN): 782.5
Rotating speed (r/min): 5.5
Travel speed (km/h): 2.4 / 3.5
Maximum digging height (mm): 12490
Maximum digging distance (mm): 13875
Maximum digging depth (mm): 8165
Emissions: Stage III
Technical specifications
Heavy-duty mining excavator engineered for continuous high-intensity operations. Equipped with a large-displacement, high-output engine featuring low vibration, enhanced cooling and extended service intervals. Electronically controlled hydraulic system optimizes digging power and reduces energy loss. Reinforced undercarriage and boom/arm structures increase durability and stability in harsh mining environments.
Cab and Electrical System
Ergonomically designed cab provides good visibility and accessible maintenance points. Integrated 360° panoramic camera system, protected wiring harnesses and robust connectors ensure electrical reliability under heavy-duty conditions. Cab layout and controls are configured for operator efficiency and long shifts.
Parameters
Model: SE1350-G
Operating weight (kg): 125000
Engine power (kW/rpm): 680/1800
Bucket capacity (m³): 8.5
External dimensions (mm): 14845 × 5385 × 6130
Bucket rod digging force (kN): 610
Bucket digging force (kN): 782.5
Rotating speed (r/min): 5.5
Travel speed (km/h): 2.4 / 3.5
Maximum digging height (mm): 12490
Maximum digging distance (mm): 13875
Maximum digging depth (mm): 8165
Emissions: Stage III
Technical specifications
- Operating weight (kg): 125000
- Engine power (kW/rpm): 680/1800
- Bucket capacity (m³): 8.5
- External dimensions (mm): 14845 × 5385 × 6130
- Bucket rod digging force (kN): 610
- Bucket digging force (kN): 782.5
- Rotating speed (r/min): 5.5
- Travel speed (km/h): 2.4 / 3.5
- Maximum digging height (mm): 12490
- Maximum digging distance (mm): 13875
- Maximum digging depth (mm): 8165
- Emissions: Stage III
