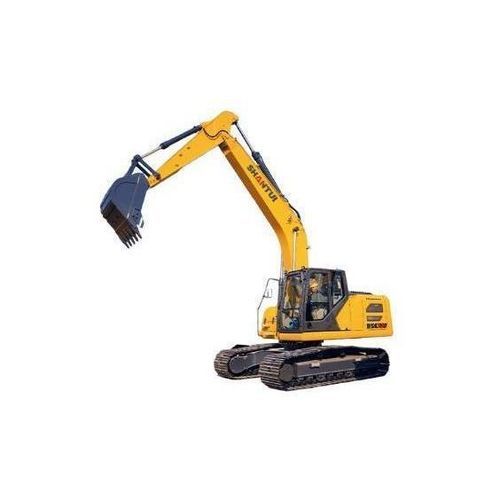

Medium excavator SE220-B

crawlerdieselfor construction

Product overview
The SE220-B crawler hydraulic excavator is designed for international markets to deliver energy-efficient, high-output performance in medium-duty earthmoving operations. Its high-power direct-injection engine supports broad fuel compatibility and simplified maintenance. The negative-flow hydraulic system with a large-bore main valve minimizes internal pressure loss and provides stable, predictable hydraulic control. Compound boom-arm-bucket movements are smooth, enabling precise digging and positioning. The new-generation high-sealing cab and high-capacity air conditioning improve operator comfort and reduce fatigue during extended shifts.

Applications

• Road construction, site preparation and general earthmoving
• Trenching, foundation excavation and utility installation
• Quarry operations and medium-scale mining support

Parameters
Model: SE220-B
Operating weight (kg): 21900
Engine power (kW / rpm): 129 / 2200
Bucket capacity (m³): 1.1
External dimensions (L×W×H mm): 9600 × 2980 × 3100
Bucket rod digging force (kN): 107
Bucket digging force (kN): 148
Rotating speed (r/min): 11
Travel speed (km/h): 3.3 / 5.3
Maximum digging height (mm): 10100
Maximum digging distance (mm): 9865
Maximum digging depth (mm): 6490
Emissions: China Stage II

Characteristics / Technical specifications

• Type: Crawler hydraulic excavator (Medium Excavator)
• Operating weight: 21900 kg
• Engine power: 129 kW @ 2200 rpm
• Bucket capacity: 1.1 m³
• External dimensions (L×W×H): 9600 × 2980 × 3100 mm
• Bucket rod digging force: 107 kN
• Bucket digging force: 148 kN
• Rotating speed: 11 r/min
• Travel speed: 3.3 / 5.3 km/h
• Maximum digging height: 10100 mm
• Maximum digging distance: 9865 mm
• Maximum digging depth: 6490 mm
• Emissions level: China Stage II
