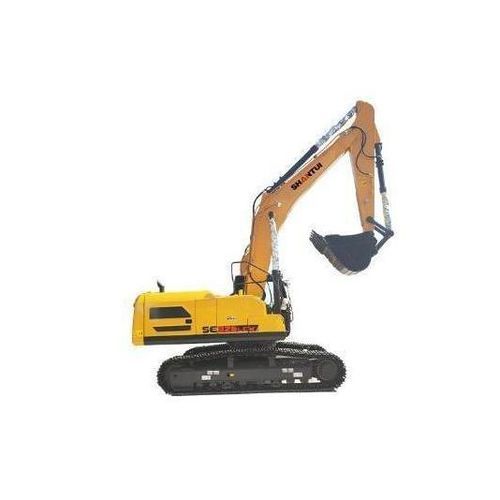

Medium excavator SE325LCW

crawlerergonomichigh-torque

Category Large Excavator
Model SE325LCW

Characteristic
Designed for small-scale mining and large earthmoving tasks, the SE325LCW features an efficient powertrain and advanced hydraulic components to reduce fuel consumption while maintaining strong swing torque. A durable undercarriage, ergonomically arranged intelligent cab, and service-friendly layout support extended operation and simplified maintenance.

Application Cases

• Shantui SE350 excavator works in the railway construction project in Malaysia
• Shantui SE500LCW excavator in Kyrgyzstan
• Shantui SE550LC working on a mining site in Cambodia
• Shantui SE370LC excavator works on a mining site in Eritrea
• Shantui SE335LC excavator works in Uganda alluvial gold ore
• Shantui SE220LC excavator with breaker working in desert in Saudi

Parameter
Operating weight(kg) | 32500
Engine power(kW/rpm) | 228/2000
Bucket capacity(m³) | 1.6
External dimensions(mm) | 10850*3200*3405
Bucket rod digging force(kN) | 140 (150)
Bucket digging force(kN) | 206
Rotating speed(r/min) | 10
Travel speed(km/h) | 3.3/5.5
Maximum digging height(mm) | 9905
Maximum digging distance(mm) | 10883
Maximum digging depth(mm) | 7186
Emissions (Indicated as per international standards) | Stage III

Technical specifications

• Operating weight (kg): 32500
• Engine power (kW/rpm): 228/2000
• Bucket capacity (m³): 1.6
• External dimensions (mm): 10850*3200*3405
• Bucket rod digging force (kN): 140 (150)
• Bucket digging force (kN): 206
• Rotating speed (r/min): 10
• Travel speed (km/h): 3.3/5.5
• Maximum digging height (mm): 9905
• Maximum digging distance (mm): 10883
• Maximum digging depth (mm): 7186
• Emissions: Stage III
