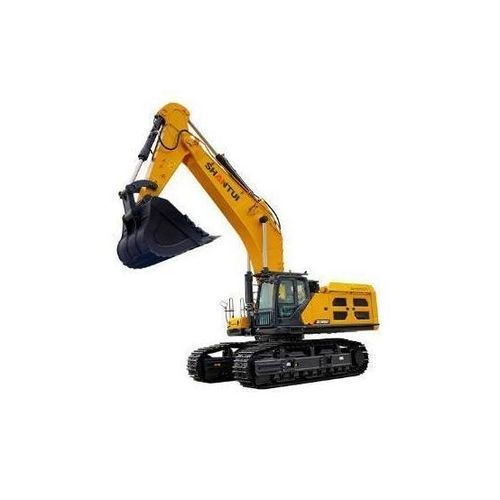

Crawler excavator SE900LCW

demolitioncompactdiesel

Product Overview
Featuring an all-new exterior design and powered by a Weichai WP17T engine for improved powertrain matching, higher digging force and greater efficiency. The entire machine has been validated through high-intensity, multi-condition, long-duration testing, with optimized and enhanced structural strength. Equipped with a fully protective cab featuring FOPS/ROPS certification, continuously adjustable air-suspension seats, and continuously adjustable work priority for enhanced operator comfort.

Application
This model is primarily used for mine loading and stripping operations, while also accommodating breaking applications.

Technical Parameters (table)
Parameter - SE900LCW
Operating weight(kg): 90000
Engine power(kW/rpm): 566/1900
Bucket capacity(m³): 6
External dimensions(mm): 13250*4380*4930
Bucket rod digging force(kN): 418
Bucket digging force(kN): 435
Rotating speed(r/min): 6.8
Travel speed(km/h): 3.0/4.3
Maximum digging height(mm): 11152
Maximum digging distance(mm): 12270
Maximum digging depth(mm): 7422
Emissions (Indicated as per international standards): Stage III

Characteristics / Technical specifications

• Model: SE900LCW
• Operating weight: 90000 kg
• Engine: Weichai WP17T
• Engine power: 566 kW / 1900 rpm
• Bucket capacity: 6 m³
• External dimensions (L*W*H): 13250 * 4380 * 4930 mm
• Bucket rod digging force: 418 kN
• Bucket digging force: 435 kN
• Rotating speed: 6.8 r/min
• Travel speed: 3.0 / 4.3 km/h
• Maximum digging height: 11152 mm
• Maximum digging distance: 12270 mm
• Maximum digging depth: 7422 mm
• Emissions: Stage III
