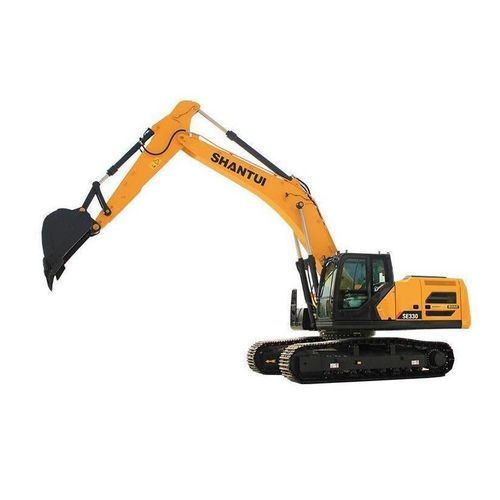

Large excavator SE330LC

crawlercompactdiesel

Product
Large Excavator
SE330LC

Characteristics

• Adaptability to diverse working conditions: Reinforced working device and interchangeable attachments allow flexible configuration for excavation, trenching and loading tasks. Multiple working modes and gear settings enable optimization for different ground and load conditions.
• Ease of maintenance and operator comfort: Intelligent electronic control system ensures precise, coordinated machine responses and intuitive operation. Spacious maintenance access and clearly positioned service points reduce inspection and downtime.
• Configuration highlights: Powered by a high-power engine from a leading manufacturer for dependable performance and improved fuel efficiency. Matched premium hydraulic components for durability. 37T slewing bearing increases load capacity and operational reliability.

Parameters
Operating weight (kg): 30300
Engine power (kW/rpm): 228/2000
Bucket capacity (m³): 1.6
External dimensions (mm): 10850*3200*3405
Bucket rod digging force (kN): 140(155)
Bucket digging force (kN): 210
Rotating speed (r/min): 0-10.7
Travel speed (km/h): 3.3/5.5
Maximum digging height (mm): 9905
Maximum digging distance (mm): 10883
Maximum digging depth (mm): 7186
Emissions (as per international standards): Tier 3

Technical specifications

• Category: Large Excavator
• Model: SE330LC
• Operating weight: 30300 kg
• Engine power: 228 kW @ 2000 rpm
• Bucket capacity: 1.6 m³
• External dimensions: 10850*3200*3405 mm
• Bucket rod digging force: 140(155) kN
• Bucket digging force: 210 kN
• Rotating speed: 0-10.7 r/min
• Travel speed: 3.3 / 5.5 km/h
• Maximum digging height: 9905 mm
• Maximum digging distance: 10883 mm
• Maximum digging depth: 7186 mm
• Emissions: Tier 3
