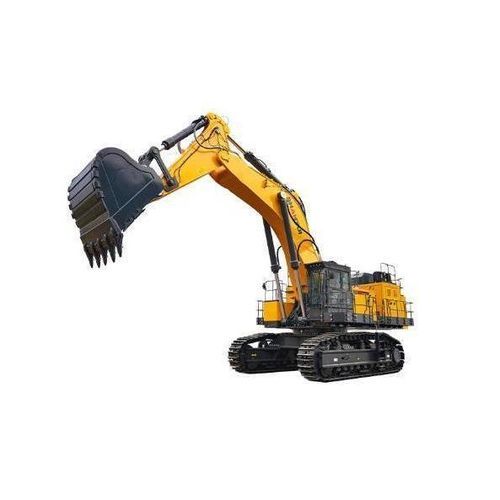

Crawler excavator SE1500-G MS

compacthigh-torquediesel

Product category
Mining excavator

Overview
Compliant with Australian mining safety certification. Powered by a Weichai 8M33 engine delivering 680 kW at 1800 rpm (low RPM, high torque) for a broad, fuel-efficient operating range and reduced consumption. The enlarged and widened working implement incorporates cast and forged key structural components to cope with diverse mining conditions. The large 10 m³ bucket capacity is designed to increase loading productivity in high-volume operations.

Key features

• Automatic lubrication system and reverse-blow air filter to reduce manual maintenance
• Modular service access for simplified maintenance of major components
• 10.1-inch smart touchscreen with Smart Display, selectable operating modes, Smart Interaction, Control Assistance and One-Touch Start
• 360° panoramic camera for enhanced operator visibility and site awareness

Technical parameters

• Model: SE1500-G MS
• Category: Mining Excavator
• Operating weight: 150,000 kg
• Engine: Weichai 8M33, 680 kW at 1800 rpm (low RPM, high torque)
• Bucket capacity: 10 m³
• External dimensions (L×W×H): 15,660 mm × 5,835 mm × 6,490 mm
• Bucket rod digging force: 560 kN
• Bucket digging force: 630 kN
• Rotating speed: 4.5 r/min
• Travel speed: 2.2 / 3.2 km/h
• Maximum digging height: 13,470 mm
• Maximum digging distance: 14,060 mm
• Maximum digging depth: 7,700 mm
• Emissions stage: Stage III
• Maintenance features: automatic lubrication system, reverse-blow air filter, modular service access
• Operator interface: 10.1-inch smart touchscreen with Smart Display, Operating Mode, Smart Interaction, Control Assistance, One-Touch Start, 360° panoramic camera
