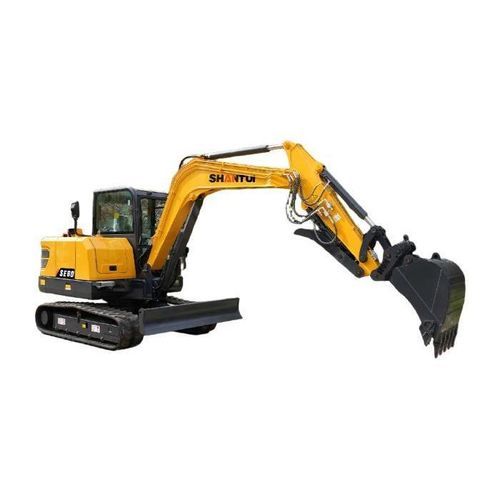

Medium excavator SE60-10Acrawlercompactstandard
Add to favorites
Compare this product
Characteristics
- Product line
- medium
- Locomotion
- crawler
- Type
- standard, compact
- Other characteristics.
- diesel, for construction, Tier 4
- Engine model
- Kubota
- Operating weight
5,960 kg
(13,139.6 lb)- Engine power
36 kW
(48.9 hp)- Bucket capacity
0.22 m³
(7.769 ft³)
Description
Overview
The SE60-10A crawler hydraulic excavator is powered by a Kubota engine compliant with EU Stage V / EPA Tier 4 emissions and features a load-sensing hydraulic system for smooth, precise control. The safety-certified cab and a three-piece hood improve operator protection and service access.
Key features
Applications
Technical specifications
The SE60-10A crawler hydraulic excavator is powered by a Kubota engine compliant with EU Stage V / EPA Tier 4 emissions and features a load-sensing hydraulic system for smooth, precise control. The safety-certified cab and a three-piece hood improve operator protection and service access.
Key features
- Operating weight: 5960 kg
- Engine power: 36 kW @ 2000 rpm (Kubota, EU Stage V / EPA Tier 4 compliant)
- Bucket capacity: 0.22 m³
- Hydraulics: Load-sensing hydraulic system for fine control and stable operation
- Cab: Safety certified for operator protection
- Serviceability: Three-piece hood for improved access to maintenance points
- Undercarriage: Robust track frame and components for demanding site conditions
Applications
- Shantui SE350 excavator on a railway construction project in Malaysia
- Shantui SE500LCW excavator in Kyrgyzstan
- Shantui SE550LC working at a mining site in Cambodia
- Shantui SE370LC excavator on a mining site in Eritrea
- Shantui SE335LC excavator operating on alluvial gold ore in Uganda
- Shantui SE220LC with breaker working in desert conditions in Saudi Arabia
Technical specifications
- Model: SE60-10A
- Operating weight: 5960 kg
- Engine power: 36 kW @ 2000 rpm
- Engine: Kubota (EU Stage V / EPA Tier 4 compliant)
- Bucket capacity: 0.22 m³
- Dimensions (L×W×H): 5855 × 1880 × 2610 mm
- Bucket rod digging force: 29 kN
- Bucket digging force: 48 kN
- Swing speed: 11 r/min
- Travel speed: 2.2 / 4 km/h
- Max digging height: 5785 mm
- Max digging reach: 6200 mm
- Max digging depth: 3850 mm
- Emissions: EU Stage V (as indicated per international standards)
