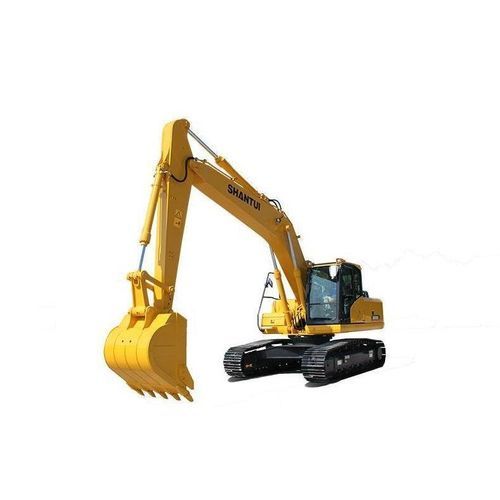

Medium excavator SE220

crawlerdieselfor construction

Product Overview
Medium Excavator SE220 designed for medium-duty excavation tasks. It combines a large-displacement engine with a high-performance hydraulic system to deliver smooth operation and improved fuel efficiency, and supports a range of attachments for varied working conditions.

Key Features

• Drive and hydraulic configuration: Dedicated large-displacement engine paired with a precisely calibrated hydraulic system. Percentage throttle control enables accurate coordination of machine movements for smooth operation and optimized fuel use.
• Maintenance and operator accessibility: Rear-opening lightweight engine hood with wide access for service. Fuel filter elements are centrally located near the right-side door. Coolant refill and air filter replacement points are easily accessible.
• Structural reliability and attachment compatibility: Reinforced structural components enhance durability. The machine accepts a range of booms, arms and bucket sizes and is compatible with multiple attachments to adapt to diverse site conditions.

Technical Parameters

• Model: SE220
• Operating weight: 21900 kg
• Engine power: 112 kW @ 1950 rpm
• Bucket capacity: 1.05 m³
• External dimensions (L×W×H): 9605 × 3080 × 3070 mm
• Bucket rod digging force: 92.5 / 101 kN
• Bucket digging force: 127 / 138 kN
• Rotating speed: 0–11 r/min
• Travel speed: 3.3 / 5.1 km/h
• Maximum digging height: 10100 mm
• Maximum digging distance: 9865 mm
• Maximum digging depth: 6490 mm
• Emissions standard: Eu stage II

Application Cases

• Shantui SE350 excavator used in a railway construction project in Malaysia
• Shantui SE500LCW operating in Kyrgyzstan
• Shantui SE550LC working on a mining site in Cambodia
• Shantui SE370LC operating at a mining site in Eritrea
• Shantui SE335LC used on alluvial gold ore operations in Uganda
• Shantui SE220LC with breaker working in desert conditions in Saudi Arabia

Technical specifications

• Operating weight: 21900 kg
• Engine power: 112 kW @ 1950 rpm
• Bucket capacity: 1.05 m³
• External dimensions: 9605 × 3080 × 3070 mm
• Bucket rod digging force: 92.5 / 101 kN
• Bucket digging force: 127 / 138 kN
• Rotating speed: 0–11 r/min
• Travel speed: 3.3 / 5.1 km/h
• Maximum digging height: 10100 mm
• Maximum digging distance: 9865 mm
• Maximum digging depth: 6490 mm
• Emissions standard: Eu stage II
