Hanging lamp BOB PENDANT

painted aluminumtextileacrylic

Overview

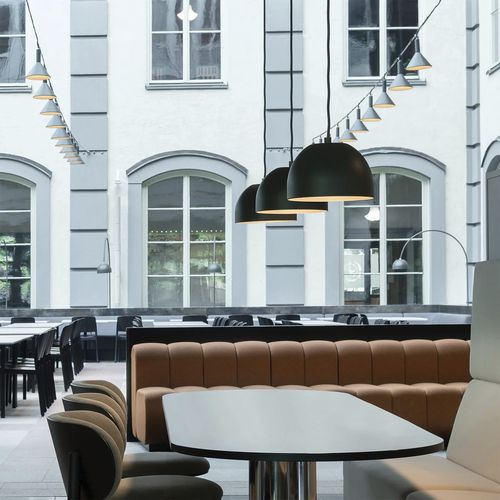

Bob is a suspended LED luminaire featuring a painted aluminum shade, a matt acrylic diffuser and a textile suspension cable. Designed for architectural and interior lighting applications where a refined linear suspended light is required.

LED info
System power: 10W. Luminaire luminous flux: 838 LM. Correlated Colour Temperature (CCT): 3000K. SDCM: 3. CRI: >90 (table lists >80 for specific variants). L70 lifetime: 50,000 h.

Installation
Suspended through cable.

Connection
2.5 m textile cable with DCL-plug or terminal block 5x4 mm2 in ceiling cup.

Classification
IP20.

Design
Thomas Bernstrand & Stefan Borselius, 2019.

Standard colours
White and Black. Other colours on request.

Product specifications (table)
POWER | LUMINAIRE FLUX | MODEL | KELVIN | CRI | COLOUR | ART.
10W | 838LM | 230V | 3000K | >80 | White | 19100101-30
10W | 838LM | DALI | 3000K | >80 | White | 19100101D30
10W | 838LM | 230V | 3000K | >80 | Black | 19100106-30
10W | 836LM | DALI | 3000K | >80 | Black | 19100106D30
D = Dimmable through DALI.

Technical specifications

• System power: 10W
• Luminaire luminous flux: 838 LM (one row also lists 836 LM for a variant)
• Correlated Colour Temperature (CCT): 3000K
• SDCM: 3
• CRI: stated as >90 in LED info; table lists >80 for specific article variants
• L70 lifetime: 50,000 h
• Installation: suspended through cable
• Connection: 2.5 m textile cable with DCL-plug or terminal block 5x4 mm2 in ceiling cup
• Ingress protection: IP20
• Materials/finish: shade in painted aluminum; matt acrylic diffuser; textile cable (other cable colours on request)
• Designers: Thomas Bernstrand & Stefan Borselius, 2019
• Article numbers: 19100101-30, 19100101D30, 19100106-30, 19100106D30
