Modern ceiling light CURVE CLUSTER METAL
circularcurvedmetal

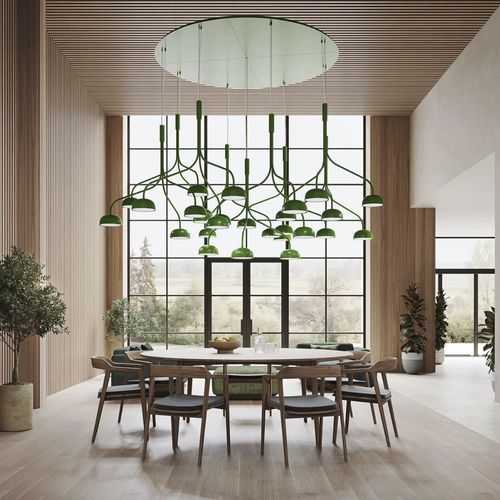

Modern ceiling light - CURVE CLUSTER METAL - ZERO - circular / curved / metal
Modern ceiling light - CURVE CLUSTER METAL - ZERO - circular / curved / metal
Modern ceiling light - CURVE CLUSTER METAL - ZERO - circular / curved / metal - image - 2
Modern ceiling light - CURVE CLUSTER METAL - ZERO - circular / curved / metal - image - 3
Modern ceiling light - CURVE CLUSTER METAL - ZERO - circular / curved / metal - image - 4
Modern ceiling light - CURVE CLUSTER METAL - ZERO - circular / curved / metal - image - 5
Modern ceiling light - CURVE CLUSTER METAL - ZERO - circular / curved / metal - image - 6
Modern ceiling light - CURVE CLUSTER METAL - ZERO - circular / curved / metal - image - 7
Modern ceiling light - CURVE CLUSTER METAL - ZERO - circular / curved / metal - image - 8
Modern ceiling light - CURVE CLUSTER METAL - ZERO - circular / curved / metal - image - 9
Modern ceiling light - CURVE CLUSTER METAL - ZERO - circular / curved / metal - image - 10
Modern ceiling light - CURVE CLUSTER METAL - ZERO - circular / curved / metal - image - 11
Add to favorites
Compare this product
Go to the ZERO website for more information

Characteristics

Style
modern
Shape
circular, curved
Material
metal
Light source
LED
Other characteristics
dimmable
Market
home
Color
white, green
Protection class
IP20
Number of lights
multiple
Power

Max.: 270 W
(0.37 hp)

Min.: 150 W
(0.2 hp)

Luminous flux

Max.: 19,170 lm

Min.: 10,650 lm

Color temperature

Max.: 3,000 K

Min.: 3,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 90 unit

Length

Max.: 300 mm
(12 in)

Min.: 150 mm
(6 in)

Description

Curve Cluster metal shades
Finish
Arms and shades in painted metal. Textile cable. Other cable colours on request.

LED info
System power 15x10W or 27x10W. Luminaire Luminous Flux 10650LM - 19170LM (see product specification). CCT 3000K. SDCM 3. CRI>90. L90 60.000H.

Installation
Suspended through wire on ceiling plate.

Connection
5 m cable in terminal block.

Classification
IP 20.

Design
Front Design 2024.

Standard colours
Other colours on request.

Product specification — Curve Cluster with metal shades - 5 fittings (15 shades) Small
POWER | LUMINAIRE FLUX | Shade D/mm | COLOUR | MODEL | | ART.
15x10W LED | 10650LM | 150 | White | Small | On/Off | 16054101-30
15x10W LED | 10650LM | 150 | White | Small | DALI | 16054101D30
15x10W LED | 10650LM | 200 | White | Small | On/Off | 16054301-30
15x10W LED | 10650LM | 200 | White | Small | DALI | 16054301D30
15x10W LED | 10650LM | 300 | White | Small | On/Off | 16054501-30
15x10W LED | 10650LM | 300 | White | Small | DALI | 16054501D30
15x10W LED | 10650LM | 150 | Green | Small | On/Off | 16054112-30
15x10W LED | 10650LM | 150 | Green | Small | DALI | 16054112D30
15x10W LED | 10650LM | 200 | Green | Small | On/Off | 16054312-30
15x10W LED | 10650LM | 200 | Green | Small | DALI | 16054312D30
15x10W LED | 10650LM | 300 | Green | Small | On/Off | 16054512-30
15x10W LED | 10650LM | 300 | Green | Small | DALI | 16054512D30

Product specification — Curve Cluster with metal shades - 5 fittings (15 shades) Large
POWER | LUMINAIRE FLUX | Shade D/mm | COLOUR | MODEL | | ART.
15x10W LED | 10650LM | 150 | White | Large | On/Off | 16055101-30
15x10W LED | 10650LM | 150 | White | Large | DALI | 16055101D30
15x10W LED | 10650LM | 200 | White | Large | On/Off | 16055301-30
15x10W LED | 10650LM | 200 | White | Large | DALI | 16055301D30
15x10W LED | 10650LM | 300 | White | Large | On/Off | 16055501-30
15x10W LED | 10650LM | 300 | White | Large | DALI | 16055501D30
15x10W LED | 10650LM | 150 | Green | Large | On/Off | 16055112-30
15x10W LED | 10650LM | 150 | Green | Large | DALI | 16055112D30
15x10W LED | 10650LM | 200 | Green | Large | On/Off | 16055312-30
15x10W LED | 10650LM | 200 | Green | Large | DALI | 16055312D30
15x10W LED | 10650LM | 300 | Green | Large | On/Off | 16055512-30
15x10W LED | 10650LM | 300 | Green | Large | DALI | 16055512D30

Product specification — Curve Cluster with metal shades - 9 fittings (27 shades) Small
POWER | LUMINAIRE FLUX | Shade D/mm | COLOUR | MODEL | | ART.
27x10W LED | 19170LM | 150 | White | Small | On/Off | 16056101-30
27x10W LED | 19170LM | 150 | White | Small | DALI | 16056101D30
27x10W LED | 19170LM | 200 | White | Small | On/Off | 16056301-30
27x10W LED | 19170LM | 200 | White | Small | DALI | 16056301D30
27x10W LED | 19170LM | 300 | White | Small | On/Off | 16056501-30
27x10W LED | 19170LM | 300 | White | Small | DALI | 16056501D30
27x10W LED | 19170LM | 150 | Green | Small | On/Off | 16056112-30
27x10W LED | 19170LM | 150 | Green | Small | DALI | 16056112D30
27x10W LED | 19170LM | 200 | Green | Small | On/Off | 16056312-30
27x10W LED | 19170LM | 200 | Green | Small | DALI | 16056312D30
27x10W LED | 19170LM | 300 | Green | Small | On/Off | 16056512-30
27x10W LED | 19170LM | 300 | Green | Small | DALI | 16056512D30

Product specification — Curve Cluster with metal shades - 9 fittings (27 shades) Large
POWER | LUMINAIRE FLUX | Shade D/mm | COLOUR | MODEL | | ART.
27x10W LED | 19170LM | 150 | White | Large | On/Off | 16057101-30
27x10W LED | 19170LM | 150 | White | Large | DALI | 16057101D30
27x10W LED | 19170LM | 200 | White | Large | On/Off | 16057301-30
27x10W LED | 19170LM | 200 | White | Large | DALI | 16057301D30
27x10W LED | 19170LM | 300 | White | Large | On/Off | 16057501-30
27x10W LED | 19170LM | 300 | White | Large | DALI | 16057501D30
27x10W LED | 19170LM | 150 | Green | Large | On/Off | 16057112-30
27x10W LED | 19170LM | 150 | Green | Large | DALI | 16057112D30
27x10W LED | 19170LM | 200 | Green | Large | On/Off | 16057312-30
27x10W LED | 19170LM | 200 | Green | Large | DALI | 16057312D30
27x10W LED | 19170LM | 300 | Green | Large | On/Off | 16057512-30
27x10W LED | 19170LM | 300 | Green | Large | DALI | 16057512D30

Technical characteristics / specifications
  • System power: 15x10W or 27x10W LEDs
  • Luminaire luminous flux: 10650 LM (15x10W) — 19170 LM (27x10W)
  • CCT: 3000K
  • SDCM: 3
  • CRI: >90
  • L90: 60,000 hours
  • Installation: Suspended through wire on ceiling plate
  • Connection: 5 m cable in terminal block
  • Classification: IP20
  • Finish: Arms and shades in painted metal; textile cable (other cable colours on request)
  • Design: Front Design 2024
  • Shade diameters available: 150 mm, 200 mm, 300 mm
  • Model variants: Small and Large; control options On/Off and DALI
