LED track light COMPOSE RAIL LINEAR

linearglasspainted metal

Overview

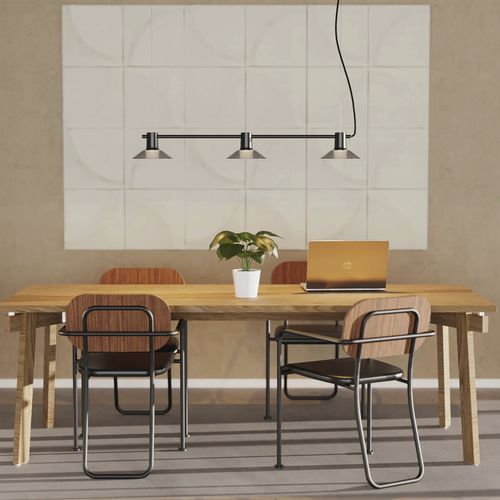

Linear pendant fixture for rail systems with a painted aluminum base and interchangeable shades in painted metal or glass. Textile cable colours can be matched to finishes; other cable colours available on request. The Compose family allows individual pendant fixtures to combine different shades and colours for project customisation.

LED info
Specifications are given per light source. Accepts dimmable LED GU10 retrofit lamps (example: 2.8W). Per-source luminous flux range: 225 lm – 367 lm. Standard CCT 2700K (3000K available on request). Colour rendering index CRI >90. SDCM 3.

Installation & connection
Suspended via steel wire. Supplied with 2.3 m textile cable with DCL plug or with 3×4 mm2 terminal block; ceiling cup included. Cable colour matching to textile options facilitates coordinated installations.

Shades and finishes

• Metal shade: Small (D 98 mm) and Large (D 195 mm) — White, Black, Green.
• Perforated metal: Large (D 195 mm) — White, Black, Green.
• Glass shade: Small (D 112 mm) and Large (D 190 mm) — Clear, Grey, Green, Matt white.

Product specification

• POWER | KELVIN | CRI | COLOUR | DIFFUSER | L/MM | ART.
  3x2,8W/367LM | 2700K | >90 | White | High output | L975 | 16217101-27
• 3x2,8W/367LM | 2700K | >90 | Black | High output | L975 | 16217106-27
• 3x2,8W/367LM | 2700K | >90 | Green | High output | L975 | 16217112-27
• 5x2,8W/367LM | 2700K | >90 | White | High output | L1855 | 16217301-27
• 5x2,8W/367LM | 2700K | >90 | Black | High output | L1855 | 16217306-27
• 5x4,9W/367LM | 2700K | >90 | Green | High output | L1855 | 16217312-27

Technical specifications

• Material: painted aluminum base; shades in painted metal or glass.
• Light sources: dimmable LED retrofit GU10 options.
• Typical power configurations: 3×2.8W (L975) and 5×2.8W or 5×4.9W (L1855).
• Colour temperature: 2700K standard, 3000K on request.
• Colour rendering: CRI >90; SDCM 3.
• Diffuser: High output options.
• Connection: 2.3 m textile cable with DCL plug or 3×4 mm2 terminal block; ceiling cup included.
• Installation: suspended via wire.
• Ingress protection: IP20.
• Designer: Jens Fager (2021).
• Product family: Compose Rail Linear (modular pendant shades and colours per fixture).

Applications
Designed for architectural and interior specification in hospitality, retail, offices and residential projects where configurable pendant arrangements and high colour rendering are required.
