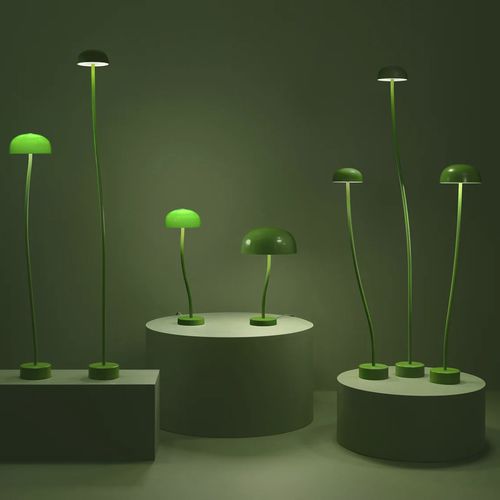

Table lamp CURVE TABLE METAL

acrylicpainted metaltextile

Overview
Designed for the renovated Art Library at Nationalmuseum, Curve reinterprets the classical library lamp as a calm, languid table fixture. Available as pendant, floor and table lamps; this entry describes the freestanding table model with painted metal shade in pigeon-blue, ivory, white or green. Inbuilt LED module 8W. Shade diameters: 150 mm, 200 mm, 300 mm.

Finish
Shades and stands in painted metal. Diffuser in matt acrylic. Textile cable. Other cable colours available on request.

LED info
System power: 8W. Luminaire luminous flux: 138 lm / 337 lm / 476 lm (see product specification). CCT: 3000K. SDCM: 3. CRI: >90. Lifespan: L80 B10 50,000 h.

Installation
Freestanding table fixture designed for library, lounge and hospitality interiors.

Connection
2.5 m textile cable with switch and plug. Other cable colours on request.

Classification
IP20.

Design
Front Design 2019.

Standard colours
White (white metall), Green (green metall), Pigeon blue, Ivory. Other colours on request.

Product specification (table)
POWER | LUMINAIRE FLUX | D/mm | H/mm | Modell | Color base | Shade | ART.
8W | 138LM | 150 | 462 | S | White | White metall | 16005101-30
8W | 337LM | 200 | 485 | S | White | White metall | 16005301-30
8W | 476LM | 300 | 534 | S | White | White metall | 16005501-30
8W | 138LM | 150 | 598 | L | White | White metall | 16007101-30
8W | 337LM | 200 | 620 | L | White | White metall | 16007301-30
8W | 476LM | 300 | 670 | L | White | White metall | 16007501-30
8W | 138LM | 150 | 462 | S | Green | Green metall | 16005112-30
8W | 337LM | 200 | 485 | S | Green | Green metall | 16005312-30
8W | 476LM | 300 | 534 | S | Green | Green metall | 16005512-30
8W | 138LM | 150 | 598 | L | Green | Green metall | 16007112-30
8W | 337LM | 200 | 620 | L | Green | Green metall | 16007312-30
8W | 476LM | 300 | 670 | L | Green | Green metall | 16007512-30
8W | 138LM | 150 | 462 | S | Pigeon blue | Pigeon blue | 16005108-30
8W | 337LM | 200 | 485 | S | Pigeon blue | Pigeon blue | 16005308-30
8W | 476LM | 300 | 534 | S | Pigeon blue | Pigeon blue | 16005508-30
8W | 138LM | 150 | 598 | L | Pigeon blue | Pigeon blue | 16007108-30
8W | 337LM | 200 | 620 | L | Pigeon blue | Pigeon blue | 16007308-30
8W | 476LM | 300 | 670 | L | Pigeon blue | Pigeon blue | 16007508-30
8W | 138LM | 150 | 462 | S | Ivory | Ivory | 16005146-30
8W | 337LM | 200 | 485 | S | Ivory | Ivory | 16005346-30
8W | 476LM | 300 | 534 | S | Ivory | Ivory | 16005546-30
8W | 138LM | 150 | 598 | L | Ivory | Ivory | 16007146-30
8W | 337LM | 200 | 620 | L | Ivory | Ivory | 16007346-30
8W | 476LM | 300 | 670 | L | Ivory | Ivory | 16007546-30

Technical specifications

• System power: 8W
• Luminaire luminous flux: 138 lm / 337 lm / 476 lm (depending on shade diameter)
• Shade diameters: 150 mm, 200 mm, 300 mm
• Heights (H/mm) vary by model and diameter (see product specification table)
• CCT: 3000K
• SDCM: 3
• CRI: >90
• Lifespan: L80 B10 50,000 h
• Finish: shades and stands in painted metal; diffuser in matt acrylic
• Cable: 2.5 m textile cable with switch and plug; other cable colours on request
• Installation: freestanding table fixture
• Classification: IP20
• Design: Front Design 2019
• Available colour bases/shades: White (white metall), Green (green metall), Pigeon blue, Ivory
• Multiple article numbers available per size and colour (see product specification table)
