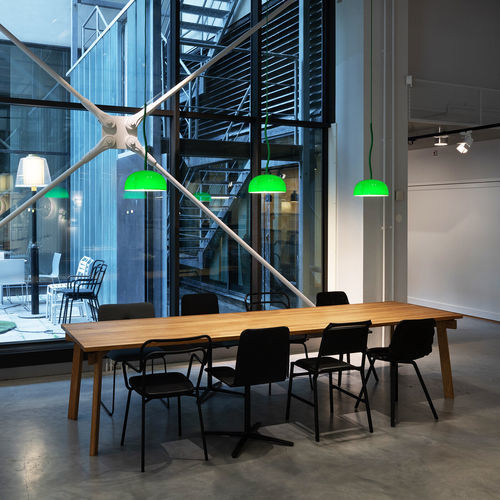

Modern ceiling light CURVEcurvedcircularopal
Add to favorites
Compare this product
Characteristics
- Style
- modern
- Shape
- circular, curved
- Material
- glass, textile, opal
- Light source
- LED
- Other characteristics
- dimmable, handmade
- Market
- for public space
- Color
- green
- Protection class
- IP20
- Number of lights
- single
- Power
10 W
- Luminous flux
Max.: 749 lm
Min.: 670 lm
- Color temperature
3,000 K
- Color rendering index (CRI)
Max.: 100 unit
Min.: 90 unit
- Height
Max.: 630 mm
(25 in)Min.: 560 mm
(22 in)- Length
Max.: 300 mm
(12 in)Min.: 150 mm
(6 in)
Description
Finish
Shades in green opal glass. Diffuser in matt acrylic. Glass shades are handblown and may vary in thickness and form. Textile cable.
LED info
System power 10W (integrated LED module). Luminaire luminous flux 670 LM — 749 LM (depending on size). CCT 3000K. SDCM 3. CRI >90. L70 B10 50,000 h.
Installation
Suspended by textile cable.
Connection
2.3 m textile cable with DCL plug or terminal block 3x4 mm2 in ceiling cup.
Classification
IP20.
Design
Front Design 2019.
Product specification
Designed for the newly renovated Art Library at Nationalmuseum, Curve draws on the classic library lamp silhouette. The collection of pendants, floor and table lamps offers calm, elongated forms in traditional green and white glass or metal shades in pigeon-blue, ivory, white or green. Available with integrated LED module. Shade diameters: 150 mm, 200 mm, 300 mm.
POWER : Integrated LED module 230V, dimmable / 10W
LUMINAIRE FLUX : 670 LM — 749 LM (depending on size)
D/mm : 150, 200, 300
Color base : Green
Shade : Green glass
Technical specifications
Shades in green opal glass. Diffuser in matt acrylic. Glass shades are handblown and may vary in thickness and form. Textile cable.
LED info
System power 10W (integrated LED module). Luminaire luminous flux 670 LM — 749 LM (depending on size). CCT 3000K. SDCM 3. CRI >90. L70 B10 50,000 h.
Installation
Suspended by textile cable.
Connection
2.3 m textile cable with DCL plug or terminal block 3x4 mm2 in ceiling cup.
Classification
IP20.
Design
Front Design 2019.
Product specification
Designed for the newly renovated Art Library at Nationalmuseum, Curve draws on the classic library lamp silhouette. The collection of pendants, floor and table lamps offers calm, elongated forms in traditional green and white glass or metal shades in pigeon-blue, ivory, white or green. Available with integrated LED module. Shade diameters: 150 mm, 200 mm, 300 mm.
POWER : Integrated LED module 230V, dimmable / 10W
LUMINAIRE FLUX : 670 LM — 749 LM (depending on size)
D/mm : 150, 200, 300
Color base : Green
Shade : Green glass
Technical specifications
- Series name: Curve
- Finish: Shades in green opal glass; diffuser in matt acrylic
- Shade production: Handblown glass — may vary in thickness and form
- System power: 10W (integrated LED module)
- Luminaire luminous flux (by size): 150 mm = 670 LM; 200 mm = 749 LM; 300 mm = 687 LM
- CCT: 3000K
- Color consistency: SDCM 3
- Color rendering: CRI >90
- Lifetime: L70 B10 50,000 h
- Installation: Suspended by cable
- Connection: 2.3 m textile cable with DCL plug or terminal block 3x4 mm2 in ceiling cup
- Classification: IP20
- Dimming / control: 230V integrated LED module dimmable; available with integrated DALI LED module (DALI versions not compatible with SwitchDim)
- Available shade diameters: 150 mm, 200 mm, 300 mm
- Standard color base: Green (other traditional options: white glass or metal shades in pigeon-blue, ivory, white or green)
- Article numbers (non-DALI): 150 mm = 16012112-30; 200 mm = 16012312-30; 300 mm = 16012512-30
- Article numbers (DALI versions): 150 mm = 16012112D30; 200 mm = 16012312D30; 300 mm = 16012512D30
