Pendant lamp BOB BOW

acrylicwirepainted steel

Overview

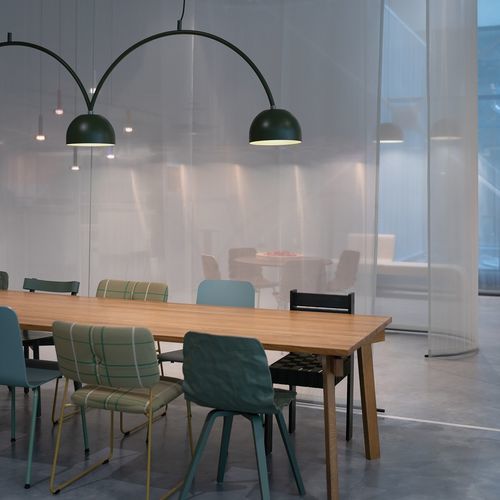

In collaboration with furniture brand Blå Station, Zero developed the BOB Bow suspended fixture: a curved pendant that follows the geometry of the BOB sofa modules. The Bow variant (introduced 2020) provides screened, intimate illumination behind a convex glare shield and is suitable for placement over sofas, in corridors and above meeting tables. Available as a bow, freestanding floor-lamp or pendant sharing the same rounded character.

Finish
Shade in painted aluminium. Tubular suspension in painted steel. Matt acrylic diffuser. Textile cable. Other cable colours on request.

LED info
System power: 30W. Luminaire luminous flux: 2514 lm. CCT: 3000 K. SDCM: 3. CRI >90 (note: product table lists variant CRI >80). L70: 50,000 h.

Installation
Suspended through wire.

Connection
2.5 m textile cable with DCL plug or terminal block 3x4mm2.

Classification
IP20.

Design
Thomas Bernstrand & Stefan Borselius, 2020.

Standard colours
Black and White. Other colours on request.

Product specification (table)
POWER | KELVIN | CRI | COLOUR | MODEL | ART.
LED
30W/2514LM | 3000K | >80 / >90* | White | Dimmable 230V | 19102301-30
30W/2514LM | 3000K | >80 / >90* | Black | Dimmable 230V | 19102306-30

Technical specifications

• System power: 30W
• Luminaire luminous flux: 2514 lm
• Correlated Colour Temperature (CCT): 3000 K
• SDCM: 3
• Colour Rendering Index (CRI): >90 (LED data); variant table indicates >80 for listed models
• L70: 50,000 h
• Installation: suspended through wire
• Connection: 2.5 m textile cable with DCL plug or terminal block 3x4mm2
• Classification: IP20
• Finish: painted aluminium shade; painted steel tubular suspension; matt acrylic diffuser; textile cable (other cable colours on request)
• Design: Thomas Bernstrand & Stefan Borselius, 2020
• Standard colours: Black and White (other colours on request)
• Product variants and article numbers: White — Model: Dimmable 230V — Art.: 19102301-30; Black — Model: Dimmable 230V — Art.: 19102306-30
