Pendant lamp BOB LIGHT XLtextileacryliccontemporary
Add to favorites
Compare this product
Characteristics
- Type
- pendant
- Material
- textile, acrylic
- Style
- contemporary
- Power source
- corded
- Location
- indoor
- Market
- commercial, contract
- Base type
- straight
- Diffuser shape
- round
- Protection class
- IP20
- Color
- white, black
- Light source
- LED
- Number of lights
- single
- Other characteristics
- dimmable, DALI
- Height
250 cm
(98.4 in)
Description
Overview

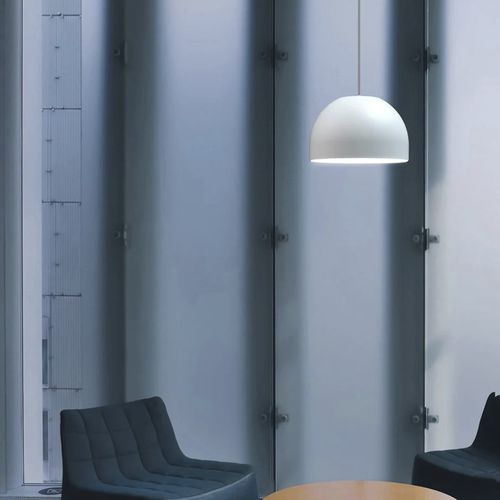

Bob XL is a large pendant luminaire from the Bob family, combining a smoothly rounded painted aluminium shade with a matt acrylic diffuser. Diameter 400 mm. Designed for suspended installation and for use in architectural and contract interiors.
Finish
Painted aluminium shade. Matt acrylic diffuser. Textile cable. Other cable colours available on request.
LED info
Installation
Suspended by textile cable; suitable for standard ceiling mounting in commercial and residential projects.
Connection
2.5 m textile cable with DCL plug or terminal block 5x4 mm² in ceiling cup. Other connection options on request.
Classification
IP20.
Design
Designed by Thomas Bernstrand & Stefan Borselius, 2019.
Standard colours
White and Black listed; other colours available on request.
Product specification (table)
POWER/LUMINAIRE FLUX | MODEL | KELVIN | CRI | COLOUR | ART.
14W / 955LM | On/Off | 3000K | >80 | White | 19100301-30
14W / 955LM | DALI | 3000K | >80 | White | 19100301D30
14W / 955LM | On/Off | 3000K | >80 | Black | 19100306-30
14W / 955LM | DALI | 3000K | >80 | Black | 19100306D30
D = Dimmable DALI, SwitchDim
Technical specifications
Bob XL is a large pendant luminaire from the Bob family, combining a smoothly rounded painted aluminium shade with a matt acrylic diffuser. Diameter 400 mm. Designed for suspended installation and for use in architectural and contract interiors.
Finish
Painted aluminium shade. Matt acrylic diffuser. Textile cable. Other cable colours available on request.
LED info
- System power: 14 W
- Luminaire luminous flux: 955 lm
- Correlated Colour Temperature (CCT): 3000 K
- SDCM: 3
- Colour Rendering Index (CRI): >90 (see LED info) — table lists >80 for specific variants
- L70 lifetime: 50,000 h
Installation
Suspended by textile cable; suitable for standard ceiling mounting in commercial and residential projects.
Connection
2.5 m textile cable with DCL plug or terminal block 5x4 mm² in ceiling cup. Other connection options on request.
Classification
IP20.
Design
Designed by Thomas Bernstrand & Stefan Borselius, 2019.
Standard colours
White and Black listed; other colours available on request.
Product specification (table)
POWER/LUMINAIRE FLUX | MODEL | KELVIN | CRI | COLOUR | ART.
14W / 955LM | On/Off | 3000K | >80 | White | 19100301-30
14W / 955LM | DALI | 3000K | >80 | White | 19100301D30
14W / 955LM | On/Off | 3000K | >80 | Black | 19100306-30
14W / 955LM | DALI | 3000K | >80 | Black | 19100306D30
D = Dimmable DALI, SwitchDim
Technical specifications
- Diameter: 400 mm (Bob XL)
- System power: 14 W
- Luminaire luminous flux: 955 lm
- CCT: 3000 K
- CRI: >90 (LED info) — table entries list >80 for variants
- SDCM: 3
- L70 lifetime: 50,000 h
- Materials: painted aluminium shade; matt acrylic diffuser
- Cable: 2.5 m textile cable (other cable colours on request)
- Connection options: DCL plug or terminal block 5x4 mm² in ceiling cup
- Installation: suspended by cable
- Ingress protection: IP20
- Designers: Thomas Bernstrand & Stefan Borselius (2019)
- Available control options: On/Off, DALI, dimmable (D = DALI, SwitchDim)
- Article numbers (examples): 19100301-30, 19100301D30, 19100306-30, 19100306D30
