Circular ceiling light MIST

acrylicglassmetal

Overview
Mist is a suspended LED luminaire with a painted metal base, an inner opal acrylic shade featuring a painted coloured gradient and an outer diffused matt glass shade. Each fixture has a unique expression due to variations in the semi‑transparent glass whiteness.

LED info
System power: 9W – 18W. Luminaire luminous flux: 880 lm – 1947 lm (depending on model). CCT: 3000 K. SDCM: 3. CRI > 80.

Installation

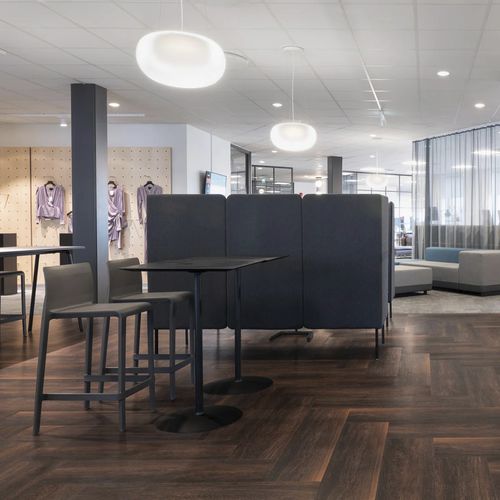

Suspended via steel wire; suitable for interior architectural applications such as lobbies, reception areas, restaurants and offices.

Connection
Supplied with 2 m cable and terminal block housed inside the ceiling canopy for on‑site wiring.

Classification & Design
Ingress protection: IP20. Design: Front Design 2017.

Colours & variants
W | D/MM | COLOUR | ART.
LED 880LM/9W | 250 | Opal | 8365-1-01
LED 880LM/9W | 250 | Opal | 8365-1-01HFF
LED 880LM/9W | 250 | Pink | 8365-1-42
LED 880LM/9W | 250 | Pink | 8365-1-42HFF
LED 1947LM/18W | 350 | Opal | 8365-3-01
LED 1947LM/18W | 350 | Opal | 8365-3-01HFF
LED 1947LM/18W | 350 | Pink | 8365-3-42
LED 1947LM/18W | 350 | Pink | 8365-3-42HFF
HFF = DALI or SwitchDim (dimmable).

Product specification

• Product name: Mist
• Manufacturer / Brand: Zero
• Finish: painted metal base; inner shade in opal acrylic with painted coloured gradient; outer shade in diffused matt glass
• System power: 9W – 18W
• Luminaire luminous flux: 880 lm – 1947 lm (depending on model)
• CCT: 3000 K
• SDCM: 3
• CRI: > 80
• Installation: suspended via wire
• Connection: 2 m cable with terminal block inside canopy
• Ingress protection: IP20
• Design year: Front Design 2017
• Available colours: Opal, Pink (other colours on request)
• Available variants / article numbers: 8365-1-01, 8365-1-01HFF, 8365-1-42, 8365-1-42HFF, 8365-3-01, 8365-3-01HFF, 8365-3-42, 8365-3-42HFF
• Dimming option: HFF = DALI or SwitchDim (dimmable)
