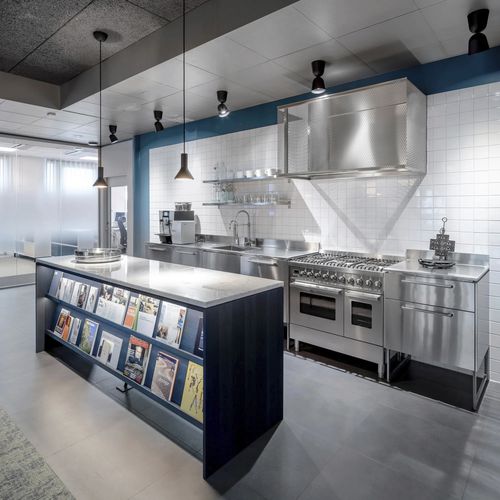

Surface mounted spotlight CONVEXceiling-mountedfor ceilingLED
Add to favorites
Compare this product
Characteristics
- Type
- surface mounted, ceiling-mounted, for ceiling
- Light source
- LED
- Shape
- round, circular
- Protection class
- IP20
- Interior/exterior use
- for indoor use, indoor
- Applications
- commercial, home
- Material
- aluminum
- Color
- black, white, green
- Dimmable
- dimmable
- Style
- modern
- Number of lights
- single, 1 light
- Other characteristics
- orientable, DALI
- Height
254 mm
(10 in)- Length
124 mm
(5 in)- Width
Min.: 160 mm
(6 in)Max.: 160 mm
(6 in)- Power
Min.: 17 W
Max.: 17 W
- Luminous flux
Min.: 1,250 lm
Max.: 1,325 lm
- Color temperature
Min.: 3,000 K
Max.: 3,000 K
- Color rendering index (CRI)
Min.: 90 unit
Max.: 100 unit
Description
Product name
Convex spotlight
Finish
Body in painted aluminium.
LED info
Installation
Surface-mounted ceiling installation. Rotatable in all directions for precise aiming.
Connection
Terminal block.
Classification
IP 20.
Design
Jens Fager, 2017.
Standard colours
Standard finishes: White (-01), Black (-06), Green (-12). Other colours available on request.
Product specification
Multiple Convex models are available. The characteristic gently curved top is offered as wall fixtures (indoor/outdoor), pendants, pole fixtures, bollards and as larger pendants and spotlights. All variants deliver efficient, well-controlled illumination. Diameter: 160 mm. Spotlights come in three beam angles: narrow (18°), medium (24°) and wide (54°). Options: 3‑phase adaptor and dimmable 3‑phase adaptor compatible with Global Trac Pulse (DALI). Refer to product codes below for exact configurations.
Table (W | MOUNTING | BEAM | ART.)
Notes
Spotlight beam angles: narrow 18°, medium 24°, wide 54°. Diameter: 160 mm.
Convex spotlight
Finish
Body in painted aluminium.
LED info
- System power: 17 W
- Luminaire luminous flux: 1250–1325 lm (see product specification)
- CCT: 3000 K · SDCM: 3 · CRI: >90
- L90: 60,000 h
Installation
Surface-mounted ceiling installation. Rotatable in all directions for precise aiming.
Connection
Terminal block.
Classification
IP 20.
Design
Jens Fager, 2017.
Standard colours
Standard finishes: White (-01), Black (-06), Green (-12). Other colours available on request.
Product specification
Multiple Convex models are available. The characteristic gently curved top is offered as wall fixtures (indoor/outdoor), pendants, pole fixtures, bollards and as larger pendants and spotlights. All variants deliver efficient, well-controlled illumination. Diameter: 160 mm. Spotlights come in three beam angles: narrow (18°), medium (24°) and wide (54°). Options: 3‑phase adaptor and dimmable 3‑phase adaptor compatible with Global Trac Pulse (DALI). Refer to product codes below for exact configurations.
Table (W | MOUNTING | BEAM | ART.)
- LED1325LM/17W | | 18° | 8400-1-XX
- LED1325LM/17W | | 18° | 8400-1-XXHFF
- LED1250LM/17W | | 24° | 8401-1-XX
- LED1250LM/17W | | 24° | 8401-1-XXHFF
- LED1310LM/17W | | 54° | 8402-1-XX
- LED1310LM/17W | | 54° | 8402-1-XXHFF
Notes
Spotlight beam angles: narrow 18°, medium 24°, wide 54°. Diameter: 160 mm.
