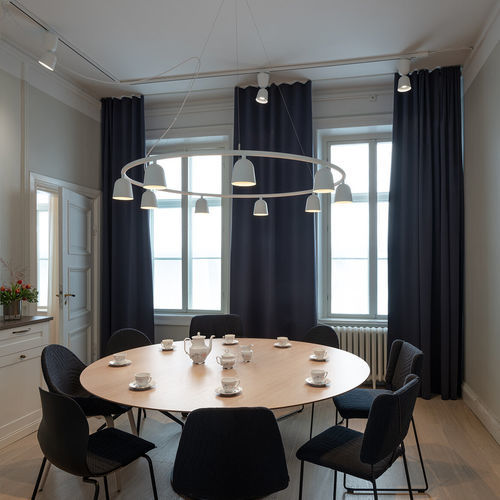

Hanging lamp CONVEX CIRCLE

metalwirecontemporary

Product name
Convex Circle

Finish
Rail and shades in painted or galvanized metal. Custom rail shapes such as straight lines, ovals, other diameters and square models can be produced on request (see examples of custom button).

LED info
Information below is per light source. Including dimmable LED retrofit light source GU10. System power 5W or 7W. Luminaire luminous flux 422LM - 685LM (see product specification). CCT 2700K or 3000K. SDCM 3. CRI 80 or 90.

Installation
Suspended through wire.

Connection
2,3m cable with DCL plug or terminal block 3x4mm2 in ceiling cup.

Classification
IP 20.

Design
Jens Fager 2019.

Standard base colours
Standard versions available in black, white and galvanised metal. Other colours on request.

Product specification (table)
POWER | LUMINAIRE FLUX | KELVIN | CRI | Color | Diameter/mm | ART.
5x5W | 5x422LM | 2700K | 90 | White | 800 | 8409301-27
5x5W | 5x422LM | 2700K | 90 | Black | 800 | 8409306-27
5x5W | 5x422LM | 2700K | 90 | Galv | 800 | 8409383-27
5x7W | 5x685LM | 3000K | 80 | White | 800 | 8409301-30
5x7W | 5x685LM | 3000K | 80 | Black | 800 | 8409306-30
5x7W | 5x685LM | 3000K | 80 | Galv | 800 | 8409383-30
9x5W | 9x422LM | 2700K | 90 | White | 1400 | 8409501-27
9x5W | 9x422LM | 2700K | 90 | Black | 1400 | 8409506-27
9x5W | 9x422LM | 2700K | 90 | Galv | 1400 | 8409583-27
9x7W | 9x685LM | 3000K | 80 | White | 1400 | 8409501-30
9x7W | 9x685LM | 3000K | 80 | Black | 1400 | 8409506-30
9x7W | 9x685LM | 3000K | 80 | Galv | 1400 | 8409583-30

Notes
Convex Circle is part of the Convex family. Available diameters 800 mm and 1400 mm, with configurations of 5 or 9 LED-equipped light sources. Convex Mini is the smallest pendant in the family.

Technical specifications

• Model: Convex Circle
• Designer: Jens Fager (2019)
• Mounting: Suspended through wire
• Connection: 2.3 m cable with DCL plug or terminal block 3x4 mm2 in ceiling cup
• IP rating: IP20
• Light source: Dimmable GU10 LED retrofit
• Power options per LED: 5W or 7W (system values shown as e.g. 5x5W, 9x7W depending on model)
• Luminaire flux per LED: 422 lm (5W) or 685 lm (7W); total flux depends on number of light sources
• Correlated Colour Temperatures (CCT): 2700K or 3000K
• Colour Rendering Index (CRI): 80 or 90
• Typical diameters available: 800 mm and 1400 mm
• Standard finishes: White, Black, Galvanised (other colours on request)
