Modern wall light SPRINKLE

indoorpainted metalsteel

Overview

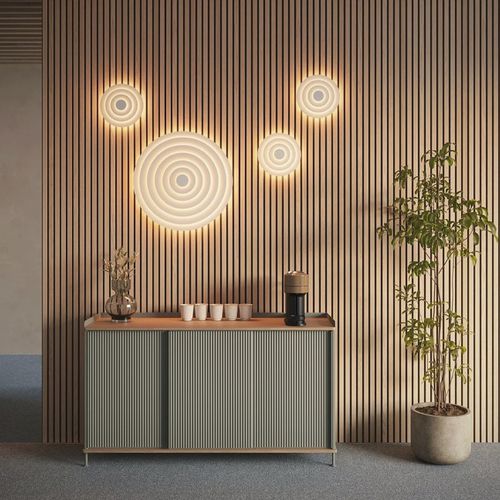

The Sprinkle Wall fixture is a circular wall luminaire that combines layered round slats with a micro-prismatic diffuser to create a focused architectural light element. Its design directs attention toward the centre while providing uniform ambient illumination. The family integrates aesthetic detail with functional performance for commercial and institutional interiors.

Finish
Painted steel lamels. Micro-prismatic diffuser (model 12307).

LED info
System power: 10W – 21W. Luminaire luminous flux: 194 lm – 859 lm (see product specification). CCT: 3000K (2700K, 4000K on request). SDCM: 3. CRI: >90. L70/B10: 50,000 h.

Installation
Surface-mounted wall installation. Variants available with closed centre (wall) and diffused centre (ceiling versions noted in product specification).

Connection
Terminal block 5 x 2.5 mm². Two entry holes.

Classification
IP20.

Design
Note Design Studio 2024.

Standard colours
White. Other colours on request.

Product specification
POWER/LUMEN | KELVIN | CRI | COLOR | D/mm | CONTROL | ART.
With closed centre. Suitable for wall mounting. | | | | | |
10W/194LM | 3000K | 90 | White | 280 | On/off | 12306101-30
10W/194LM | 3000K | 90 | White | 280 | DALI | 12306101D30
21W/440LM | 3000K | 90 | White | 640 | On/off | 12306301-30
21W/440LM | 3000K | 90 | White | 640 | DALI | 12306301D30
With diffused centre. Suitable for ceiling mounting. | | | | | |
10W/440LM | 3000K | 90 | White | 280 | On/off | 12307101-30
10W/440LM | 3000K | 90 | White | 280 | DALI | 12307101D30
21W/859LM | 3000K | 90 | White | 640 | On/off | 12307301-30
21W/859LM | 3000K | 90 | White | 640 | DALI | 12307301D30

Characteristics / Technical specifications

• Finish: Painted lamels in steel; micro-prismatic diffuser (model 12307).
• System power: 10W – 21W.
• Luminaire luminous flux: 194 lm – 859 lm.
• CCT: 3000K (2700K, 4000K on request).
• SDCM: 3.
• CRI: >90.
• L70/B10: 50,000 h.
• Installation: Surface-mounted wall installation.
• Connection: Terminal block 5 x 2.5 mm²; two entry holes.
• Classification: IP20.
• Controls available: On/off and DALI options.
• Available diameters (D/mm): 280 mm and 640 mm depending on model.
• Article numbers: examples include 12306101-30, 12306101D30, 12306301-30, 12306301D30, 12307101-30, 12307101D30, 12307301-30, 12307301D30.
• Design: Note Design Studio 2024.
• Standard colour: White (other colours on request).
