Floor-standing lamp CURVE FLOOR GLASS

flooracrylicmetal

Overview

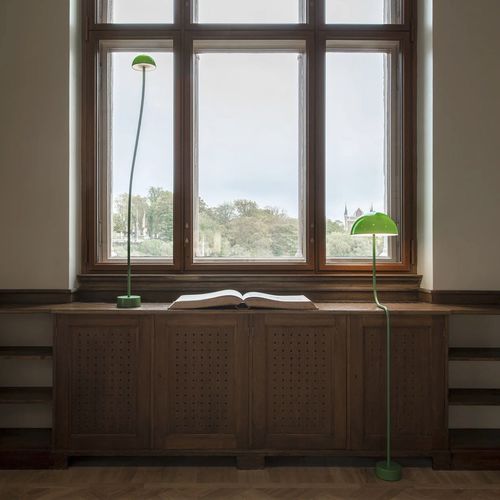

Freestanding floor lamp Curve Floor Glass designed by Front Design (2019). Painted metal stand with handblown coloured or white opal glass shades and a matt acrylic diffuser. Textile cable with switch and plug. Shades available in diameters 150, 200 and 300 mm; base colours Green and White; other colours on request.

Finish and materials
Stand in painted metal. Shades in coloured or white opal glass, handblown (variations in thickness and form possible). Diffuser in matt acrylic. Textile cable; other cable colours on request.

LED info
System power 8W. Luminaire luminous flux 170 lm — 765 lm depending on shade diameter and model. CCT 3000K. SDCM 3. CRI >90. Lumen maintenance: L80 B10 50,000 h.

Installation
Freestanding floor fixture.

Connection
2.5 m textile cable with switch and plug (other cable colours on request).

Variants and article codes

• 8W | 170 lm | D 150 mm | H 1046 mm | Model S | Base Green | Green glass | ART. 16000112-30
• 8W | 332 lm | D 200 mm | H 1070 mm | Model S | Base Green | Green glass | ART. 16000312-30
• 8W | 415 lm | D 300 mm | H 1118 mm | Model S | Base Green | Green glass | ART. 16000512-30
• 8W | 170 lm | D 150 mm | H 1560 mm | Model L | Base Green | Green glass | ART. 16002112-30
• 8W | 332 lm | D 200 mm | H 1582 mm | Model L | Base Green | Green glass | ART. 16002312-30
• 8W | 465 lm | D 150 mm | H 1046 mm | Model S | Base White | White glass | ART. 16000121-30
• 8W | 606 lm | D 200 mm | H 1070 mm | Model S | Base White | White glass | ART. 16000321-30
• 8W | 765 lm | D 300 mm | H 1118 mm | Model S | Base White | White glass | ART. 16000521-30
• 8W | 465 lm | D 150 mm | H 1560 mm | Model L | Base White | White glass | ART. 16002121-30
• 8W | 606 lm | D 200 mm | H 1582 mm | Model L | Base White | White glass | ART. 16002321-30

Technical specifications

• Product name: Curve Floor Glass
• Designer: Front Design (2019)
• Mounting: Freestanding floor fixture
• Body: Stand in painted metal
• Shade: Handblown coloured or white opal glass
• Diffuser: Matt acrylic
• Cable: 2.5 m textile cable with switch and plug (other cable colours on request)
• LED system power: 8W
• Luminaire flux: 170 lm — 765 lm depending on shade diameter and model
• CCT: 3000K
• SDCM: 3
• CRI: >90
• Lumen maintenance: L80 B10 50,000 h
• Protection class: IP 20
• Shade diameters: 150 mm, 200 mm, 300 mm
• Available base colours: Green, White (other colours on request)
• Article codes (examples): 16000112-30, 16000312-30, 16000512-30, 16002112-30, 16002312-30, 16000121-30, 16000321-30, 16000521-30, 16002121-30, 16002321-30
