Dimmable track-light system COMPOSE RAIL CIRCLE

Overview

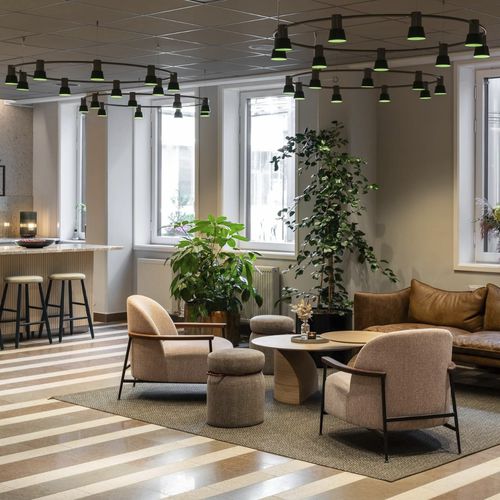

Modular suspended pendant lighting system Compose Rail Circle. Painted aluminium base with interchangeable metal or glass shades. Supplied with textile cable; cable colour matching available on request.

LED info
Including dimmable GU10 retrofit LED light source options. Per-source luminous flux: 225–367 lm. Standard CCT 2700K (3000K on request). SDCM 3. CRI >90.

Installation
Suspended via steel wire; ceiling cup included.

Connection
2.3 m textile cable with DCL plug or terminal block 3x4 mm2. Other cable colours on request.

Classification
IP20.

Design
Jens Fager, 2021.

Standard base colours
Painted aluminium base; other finish colours available on request.

Product specification

• 6 × 2.8W / 367 lm | 2700K | CRI >90 | White | High output | D800 | 16227101-27
• 6 × 2.8W / 367 lm | 2700K | CRI >90 | Black | High output | D800 | 16227106-27
• 6 × 2.8W / 367 lm | 2700K | CRI >90 | Green | High output | D800 | 16227112-27
• 9 × 2.8W / 367 lm | 2700K | CRI >90 | White | High output | D1200 | 16227301-27
• 9 × 2.8W / 367 lm | 2700K | CRI >90 | Black | High output | D1200 | 16227306-27
• 9 × 4.9W / 367 lm | 2700K | CRI >90 | Green | High output | D1200 | 16227312-27

Shades and models (metal / perforated / glass)

• Metal shade — Small — White — Ø98 mm — S16200101
• Metal shade — Large — White — Ø195 mm — S16200301
• Metal shade — Small — Black — Ø98 mm — S16200106
• Metal shade — Large — Black — Ø195 mm — S16200306
• Metal shade — Small — Green — Ø98 mm — S16200112
• Metal shade — Large — Green — Ø195 mm — S16200312
• Perforated metal — Large — White — Ø195 mm — S16210301
• Perforated metal — Large — Black — Ø195 mm — S16210306
• Perforated metal — Large — Green — Ø195 mm — S16210312
• Glass shade — Small — Clear glass — Ø112 mm — GL16201119
• Glass shade — Large — Clear glass — Ø190 mm — GL16201319
• Glass shade — Small — Grey glass — Ø112 mm — GL16201111
• Glass shade — Large — Grey glass — Ø190 mm — GL16201311
• Glass shade — Small — Green glass — Ø112 mm — GL16201112
• Glass shade — Large — Green glass — Ø190 mm — GL16201312
• Glass shade — Small — Matt white glass — Ø112 mm — GL16201121
• Glass shade — Large — Matt white glass — Ø190 mm — GL16201321

Technical specifications

• Product name / model: Compose Rail Circle
• Designer: Jens Fager (2021)
• Finish: painted aluminium base; painted metal or glass shades
• Shade materials: metal (including perforated) and glass
• Shade diameters: small ≈98 mm, large ≈190/195 mm; glass small 112 mm, glass large 190 mm
• LED light source: GU10 dimmable retrofit options; per-source lumen 225–367 lm
• Power options: 2.8W or 4.9W per light (configurations as listed)
• CCT: 2700K (3000K on request)
• CRI: >90
• SDCM: 3
• Diffuser: high output options
• Mounting: suspended via wire; ceiling cup included
• Connection: 2.3 m textile cable with DCL plug or terminal block 3x4 mm2
• IP rating: IP20
• Customisation: multiple colours and cable colours available on request
