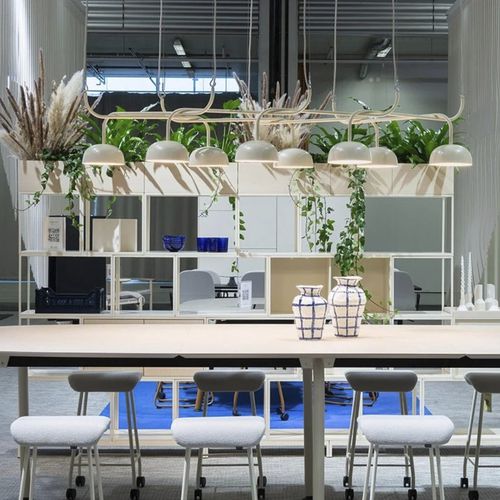

Modern ceiling light CURVE CROWN

curvedcircularring-shaped

Finish
Arms and shades in painted metal. Diffuser in opal acrylic. Textile cable.

LED info
Information below is per light source. System power 10 W. Luminaire luminous flux 710LM - 783LM (see product specification). CCT 3000K. SDCM 3. CRI >90. L70 50,000 h.

Installation
Suspended through wire. Minimum 3 fixtures are needed to build a Curve Crown. Joint ceiling cup for up to 6 fittings can be ordered separately.

Connection
2.3 m textile cable with DCL plug or terminal block 3x4 mm². Ceiling cup included.

Classification
IP20.

Design
Front Design 2022.

Standard colours
Other colours on request.

Product specification
The original Curve was designed for the renovation of Nationalmuseum and its library in 2018. There it took pride of place thanks to its attractive features taken from classical library lamps. This year, it has evolved to include a large pendant. Various models can be put together to create illumination of any size. Curve Crown may appear as a type of coronation over the interior, as well as a rhythmic circle dance with arms interlinked.

POWER | LUMINAIRE FLUX | D/mm | COLOUR | ART.
With incorporated LED module 230V | | | |
10W | 710LM | 150 | White | 16041101-30
10W | 774LM | 200 | White | 16041301-30
10W | 783LM | 300 | White | 16041501-30
10W | 710LM | 150 | Green | 16041112-30
10W | 774LM | 200 | Green | 16041312-30
10W | 783LM | 300 | Green | 16041512-30
10W | 710LM | 150 | Pigeon blue | 16041108-30
10W | 749LM | 200 | Pigeon blue | 16041308-30
10W | 783LM | 300 | Pigeon blue | 16041508-30
10W | 710LM | 150 | Ivory | 16041146-30
10W | 749LM | 200 | Ivory | 16041346-30
10W | 783LM | 300 | Ivory | 16041546-30
With incorporated LED module DALI | | | |
10W | 710LM | 150 | White | 16041101D30
10W | 774LM | 200 | White | 16041301D30
10W | 783LM | 300 | White | 16041501D30
10W | 710LM | 150 | Green | 16041112D30
10W | 774LM | 200 | Green | 16041312D30
10W | 783LM | 300 | Green | 16041512D30
10W | 710LM | 150 | Pigeon blue | 16041108D30
10W | 774LM | 200 | Pigeon blue | 16041308D30
10W | 783LM | 300 | Pigeon blue | 16041508D30
10W | 710LM | 150 | Ivory | 16041146D30
10W | 774LM | 200 | Ivory | 16041346D30
10W | 783LM | 300 | Ivory | 16041546D30

Technical specifications

• System power: 10 W (per light source)
• Luminaire luminous flux: 710 LM – 783 LM depending on model
• CCT: 3000K
• SDCM: 3
• CRI: >90
• L70: 50,000 h
• Installation: suspended through wire; minimum 3 fixtures to build a Curve Crown; joint ceiling cup for up to 6 fittings available separately
• Connection: 2.3 m textile cable with DCL plug or terminal block 3x4 mm²; ceiling cup included
• Classification: IP20
• Design: Front Design 2022
• Standard colours: White, Green, Pigeon blue, Ivory (other colours on request)
• Available variants: multiple diameters (D 150, 200, 300 mm) and article codes as listed in the product specification table
