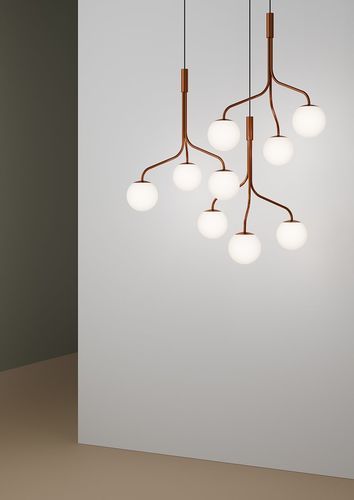

Glass chandelier Curve Cluster Single

acrylicopaltextile

Finish
Shades and arms in painted metal. Diffuser in opal acrylic (shade version). Shades in white opal (glass version). Textile cable. Other cable colours on request.

LED info
System power: 3×8W (LED) and 3×10W (LED) options. Luminaire luminous flux examples: 1125 lm (3×8W) up to 2130 lm (3×10W) depending on variant. CCT 3000K. SDCM 3. CRI > 90. Lumen maintenance L90 at 60,000 hours. Glass globe version available with E27 socket, max 10W bulbs.

Installation
Suspended through wire.

Connection
2.3 m textile cable with DCL-plug or terminal block in ceiling cup. Other cable colours available on request.

Classification
IP20.

Design
Front Design 2024.

Standard colours (shade version)
White, Green, Copper (painted copper finish with clear coating). Other colours on request.

Standard colours (glass version)
White, Copper (painted copper finish with clear coating). Other colours on request.

Product specification - With glass shades

• Small — 3×E27 max 10W — 200/796 mm — White — Article 16044101
• Small — 3×8W — 1125 lm — 200/796 mm — White — DALI — Article 16044101D30
• Small — 3×E27 max 10W — 200/796 mm — Copper — Article 16044178
• Large — 3×E27 max 10W — 200/1122 mm — White — Article 16047101
• Large — 3×8W — 1125 lm — 200/1122 mm — White — DALI — Article 16047101D30
• Large — 3×E27 max 10W — 200/1122 mm — Copper — Article 16047178

Product specification - With metal shades

• Small — 3×10W — 2130 lm — 150/746 mm — White — On/Off — Article 16043101-30
• Small — 3×10W — 2130 lm — 150/746 mm — White — DALI — Article 16043101D30
• Small — 3×10W — 2130 lm — 200/796 mm — Green — On/Off — Article 16043312-30
• Small — 3×10W — 2130 lm — 300/896 mm — White — DALI — Article 16043501D30
• Large — 3×10W — 2130 lm — 150/1072 mm — White — On/Off — Article 16046101-30
• Large — 3×10W — 2130 lm — 300/1222 mm — Green — DALI — Article 16046512D30

Notes
Measurements and article numbers shown correspond to glass-shade and metal-shade variants, different diameters and sizes (Small, Large) and control options (On/Off, DALI).

Technical specifications

• Product name: Curve Cluster Single
• Finish: painted metal shades and arms; opal acrylic diffuser (shade version); white opal for glass version
• System power: 3×8W (LED) and 3×10W (LED); glass globe version accepts 3×E27 max 10W bulbs
• Luminaire flux examples: 1125 lm (3×8W) up to 2130 lm (3×10W)
• CCT: 3000K
• Colour consistency: SDCM 3
• Colour rendering: CRI > 90
• Lumen maintenance: L90 at 60,000 hours
• Mounting: suspended through wire
• Connection: 2.3 m textile cable with DCL-plug or terminal block in ceiling cup; other cable colours on request
• Classification: IP20
• Design year: Front Design 2024
• Available finishes: White, Copper, Green; custom colours on request
• Variants: glass or metal shades; multiple diameters and sizes with specific article numbers and control options
