IP65 floodlight JNFB8-120S-5000-A1-IP65-ND

LEDcommercialindustrial

Overview

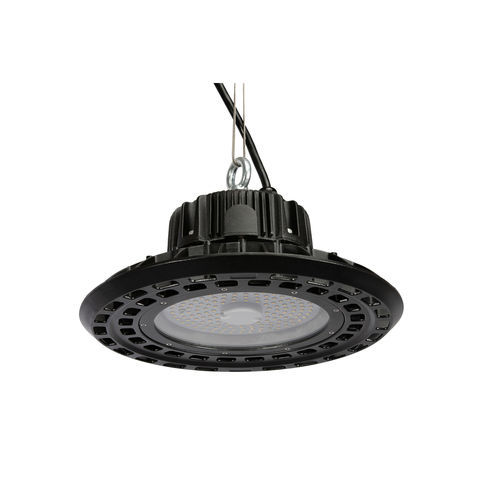

120 W flat LED high-bay luminaire JNFB8-120S-5000-A1-IP65-ND for industrial and commercial high-bay applications. Fitted with original Philips Lumileds LEDs and a Meanwell ELG-150 driver. IP65-rated housing with an integrated 72°×72° symmetric reflector for uniform distribution; non-dimmable and intended as a direct replacement for 300 W HID/HPS fixtures.

Key features

• High-efficiency 120 W LED module with Philips Lumileds chips.
• Integrated 72°×72° symmetric reflector for even illumination in high-bay spaces.
• IP65 protection against dust and water — suitable for demanding industrial environments.
• Meanwell ELG-150 driver with 10 kV surge protection for reliable operation.
• Non-dimmable design; direct replacement for 300 W HID/HPS luminaires.

Technical specifications

• Product SKU: JNFB8-120S-5000-A1-IP65-ND
• Power consumption: 120 W
• Input voltage / range: 100–305 V AC
• LED type: Philips Lumileds
• Total luminous flux: 21,800 lm
• Colour temperature (CCT): 5000 K (cool white)
• Color rendering index (CRI): >70
• Beam angle: 72° × 72° (symmetric)
• IK impact rating: IK08
• IP rating: IP65
• Dimming capability: Non-dimmable
• Power factor: >0.95
• Input frequency: 50/60 Hz
• LED driver: Meanwell ELG-150
• Surge protection: 10 kV
• Input cable type: H07RN-F 3G1.0
• Housing material: Die-cast aluminium
• Housing colour: Black
• Fixture dimensions (mm): 340 × 340 × 166 (L × W × H)
• Fixture length: 340 mm
• Fixture width: 340 mm
• Fixture height: 166 mm
• Net weight: 3.6 kg
• Export carton dimensions (mm): 360 × 360 × 205
• Products per carton: 1
• Export carton gross weight: 4.2 kg
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%–90% RH
• Lifespan: 50,000 hours
