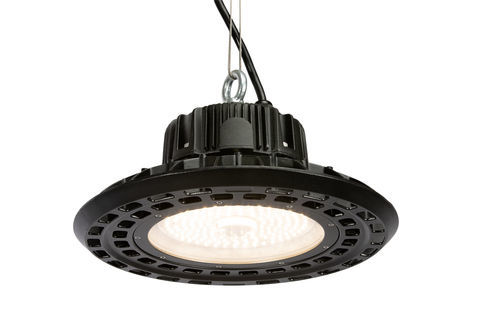

Hanging light fixture JNFB6-070S-5000-A1-IP65-DIM

LEDflatIP65

Short description
70 W LED flat high-bay luminaire with Philips Lumileds and Meanwell ELG-100 driver, IP65 and dimmable. Symmetric 72×72° integrated reflector designed to replace 200 W HID/HPS luminaires in industrial and commercial high-ceiling environments. Suitable for temperatures from -20°C to 45°C.

Product specifications

• Product SKU: JNFB6-070S-5000-A1-IP65-DIM
• Power consumption: 70 W
• Input voltage: 100–305 V AC
• LED type: Philips Lumileds
• LED driver: Meanwell ELG-100
• Luminous flux: 12,400 lm
• Colour temperature: 5,000 K (cool white)
• Beam angle: 72°×72° (symmetric)
• IP rating: IP65
• IK rating: IK08
• Colour rendering index (CRI): >70
• Power factor: >0.95
• Dimming: Dimmable
• Surge protection: 10 kV
• Input frequency: 50/60 Hz
• Input cable type: H07RN-F 3G1.0
• Housing material: Die-cast aluminum, black
• Fixture dimensions (mm): 280 × 280 × 159.5
• Net weight: 2.6 kg
• Lifespan: 50,000 hours
• Operating temperature: -20°C ~ 45°C
• Operating humidity: 10%–90% RH

Applications

• Warehouses and logistics centres
• Manufacturing halls and production lines
• Workshops and assembly areas
• Indoor sports facilities and gymnasiums
• Cold storage and refrigerated areas (check ambient range)

Packaging & Shipping

• Product dimensions (mm): 280 × 280 × 159.5
• Net weight: 2.6 kg
• Export carton (mm): 360 × 360 × 205
• Products per carton: 1
• Gross weight per carton: 4.2 kg

Additional information

• Replaces approx. 200 W metal halide/HID/HPS fixtures
• Symmetric beam for uniform area lighting
• Suitable for industrial environments requiring IP65 protection
