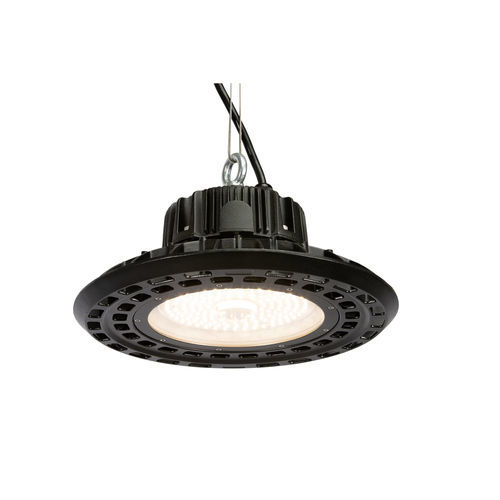

Hanging light fixture JNFB9-150S-6500-A1-IP65-ND

LEDflatIP65

This high-performance cool white LED flat high bay lamp is designed for industrial and commercial high-bay applications, offering controlled symmetric beam distribution and a sealed IP65 housing for dusty or wet environments.

Key features

• Original Philips Lumileds LEDs for stable, high-quality light
• Meanwell HLG-series LED driver with integrated surge protection (10 kV)
• Integrated symmetric reflector for controlled light distribution (72° × 72°)
• Rugged die-cast aluminium housing with IP65 ingress protection and IK08 impact rating
• Non-dimmable configuration and wide input voltage compatibility (100–305 V AC)
• Designed to replace 400 W metal halide / HID / HPS fixtures

Technical specifications

• Product SKU: JNFB9-150S-6500-A1-IP65-ND
• Power Consumption: 150 W
• Input Voltage / Range: 100–305 V AC
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell HLG-240H
• Total Lumens Output: 26,200 lm
• Colour Temperature: 6500 K (cool white)
• Color Rendering Index (CRI): >70
• Beam Angle: 72° × 72° (symmetric)
• Beam Angle Range: 100+
• Dimming Capability: Non-dimmable
• IP Rating: IP65
• IK Impact Rating: IK08
• Power Factor: >0.95
• Surge Protection: 10 kV
• Input Cable Type: H07RN-F 3G1.0
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Fixture Dimensions (L×W×H): 340 × 340 × 166 mm
• Fixture Height: 166 mm
• Fixture Length: 340 mm
• Fixture Width: 340 mm
• Number of Lamps: 1
• Operating Temperature Range: -20°C to 45°C
• Operating Humidity Range: 10%–90% RH
• Lifespan: 50,000 hours
