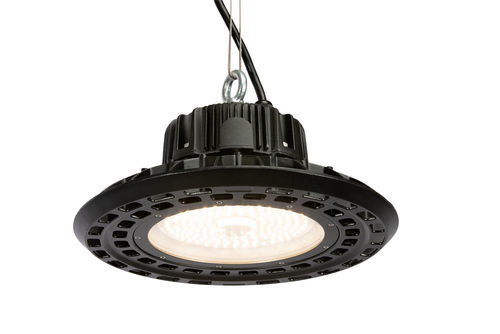

Industrial design ceiling light JNFB6-070S-4000-A1-IP65-DIM

flataluminumLED

Description
Flat 70W LED high bay luminaire equipped with Philips Lumileds LEDs and a Meanwell ELG-100 driver. Rated IP65 for dusty and wet industrial environments. Dimmable, with integrated 72×72° symmetric reflector and total luminous flux of 12,400 lm, intended as a direct replacement for 200W metal halide/HID/HPS fixtures.

Features

• Original Philips Lumileds LEDs
• Meanwell ELG-100 LED driver
• IP65 protection for dusty and wet conditions
• Dimmable performance
• Integrated 72°×72° symmetric reflector
• High output: 12,400 lm (replacement for 200W metal halide/HID/HPS)
• IK08 impact resistance
• Rated life: 50,000 hours
• Power factor >0.95 and surge protection 10 kV

Product specifications (table)
Product SKU: JNFB6-070S-4000-A1-IP65-DIM
Power Consumption: 70 W
Input Voltage: 100-305 V AC
Driver: Meanwell ELG-100
LED Type: Philips Lumileds
Total Lumens Output: 12,400 lm
Colour Temperature: 4000 K (natural white)
Beam Angle: 72°×72° (symmetric)
IP Rating: IP65
IK Impact Rating: IK08
Color Rendering Index (CRI): >70
Power Factor: >0.95
Dimming Capability: Dimmable
Housing Material: Die-cast aluminum, black
Surge Protection: 10 kV
Input Cable: H07RN-F 3G1.0
Fixture Dimensions (mm): 280 × 280 × 159.5
Net Weight: 2.6 kg
Operating Temperature: -20°C to 45°C
Operating Humidity: 10%–90% RH
Lifespan: 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 280 × 280 × 159.5 mm
Net Weight (kg): 2.6 kg
Export Carton Dimensions (mm): 360 × 360 × 205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 4.2 kg

Technical specifications

• SKU: JNFB6-070S-4000-A1-IP65-DIM
• Power: 70 W
• Voltage: 100–305 V AC
• Driver: Meanwell ELG-100
• LEDs: Philips Lumileds
• Luminous Flux: 12,400 lm
• Colour Temp.: 4000 K (natural white)
• Beam Angle: 72° × 72° symmetric
• IP: IP65
• IK: IK08
• CRI: >70
• Power Factor: >0.95
• Dimming: Yes
• Surge Protection: 10 kV
• Housing: Die-cast aluminum, black
• Dimensions: 280 × 280 × 159.5 mm
• Weight: 2.6 kg (net)
• Operating Temp.: -20°C to 45°C
• Operating Humidity: 10%–90% RH
• Lifespan: 50,000 hours
