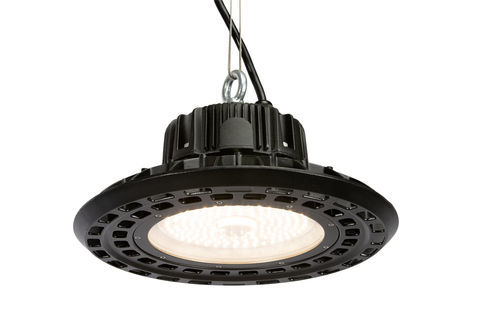

Hanging light fixture JNFB9-150S-5700-A1-IP65-ND

LEDflatIP65

High-performance 150 Watt flat LED high bay luminaire JNFB9-150S-5700-A1-IP65-ND designed for industrial and commercial facilities. It integrates Philips Lumileds LEDs with a Meanwell driver, offers IP65 protection and a fixed 72×72° symmetric reflector to replace 400 W metal halide/HID/HPS fixtures.

Features

• Integrated 72°×72° reflector for controlled symmetric light distribution
• Designed to replace 400 W metal halide / HID / HPS luminaires
• Non-dimmable high bay solution
• IP65 rating for dust and water resistance
• Equipped with original Philips Lumileds LEDs and Meanwell driver (HLG-240H)

Technical specifications

• Product SKU: JNFB9-150S-5700-A1-IP65-ND
• Power consumption: 150 W
• Input voltage / range: 100–305 V AC
• Input frequency: 50/60 Hz
• LED type: Philips Lumileds
• Driver brand: Meanwell HLG-240H
• Total luminous flux: 26,200 lm
• Colour temperature (CCT): 5700 K (cool white)
• Colour rendering index (CRI): >70
• Beam angle: 72° × 72° (symmetric)
• Beam angle range: 100+
• IP rating: IP65
• IK impact rating: IK08
• Dimming capability: Non-dimmable
• Power factor: >0.95
• Surge protection: 10 kV
• Input cable type: H07RN-F 3G1.0
• Housing material: Die-cast aluminium
• Housing colour: Black
• Fixture height: 166 mm
• Fixture length: 340 mm
• Fixture width: 340 mm
• Number of lamps: 1
• Operating temperature range: -20°C to 45°C
• Operating humidity range: 10%–90% RH
• Lifespan: 50,000 hours
• Product dimensions (mm): 340 × 340 × 166 mm
• Net weight: 3.7 kg
• Export carton dimensions (mm): 360 × 360 × 205 mm
• Products per carton: 1
• Export carton gross weight: 6.2 kg
