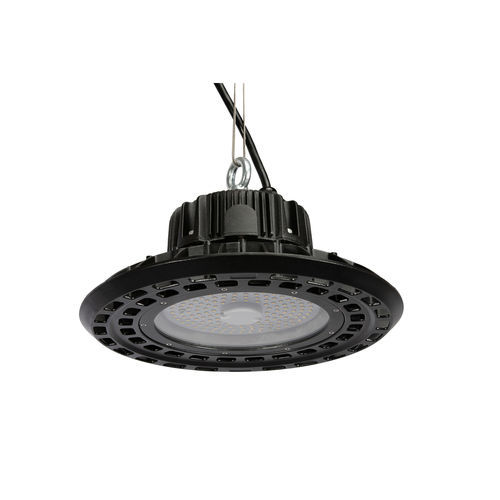

Hanging light fixture JNFB8-120S-6500-A1-IP65-DIM

LEDcircularIP65

Product overview
Flat LED high-bay luminaire JNFB8-120S-6500-A1-IP65-DIM, 120 W, designed for industrial and commercial high-bay installations. Suitable for suspension mounting in warehouses, production halls and logistics centers.

Technical specifications

• Product SKU: JNFB8-120S-6500-A1-IP65-DIM
• Power consumption: 120 W
• Input voltage / range: 100–305 V AC
• Input frequency: 50/60 Hz
• LED type: Philips Lumileds
• LED driver brand: Meanwell ELG-150
• Total luminous flux: 21,800 lm
• Colour temperature (CCT): 6500 K (cool white)
• Colour rendering index (CRI): >70
• Beam angle: 72° × 72° (symmetric)
• IK impact rating: IK08
• IP rating: IP65
• Dimming capability: Dimmable
• Power factor: >0.95
• Surge protection: 10 kV
• Input cable type: H07RN-F 3G1.0
• Housing material: Die-cast aluminum
• Housing colour: Black
• Operating temperature range: -20°C to 45°C
• Operating humidity range: 10%–90% RH
• Lifespan: 50,000 hours
• Product dimensions (mm): 340 × 340 × 166 mm
• Net weight: 3.6 kg
• Export carton dimensions (mm): 360 × 360 × 205
• Products per carton: 1
• Export carton gross weight: 4.2 kg

Applications & installation

• Intended for industrial and commercial high-bay lighting: warehouses, production halls, distribution and logistics centers
• Mounting: suspension or hook mounting compatible with standard high-bay fittings
• Observe operating temperature and ventilation requirements to ensure driver cooling and IP-rated connections

Packaging & logistics

• Each unit packaged individually; export carton dimensions and gross weight as specified
• Products per carton: 1 — check packing list for shipment details
