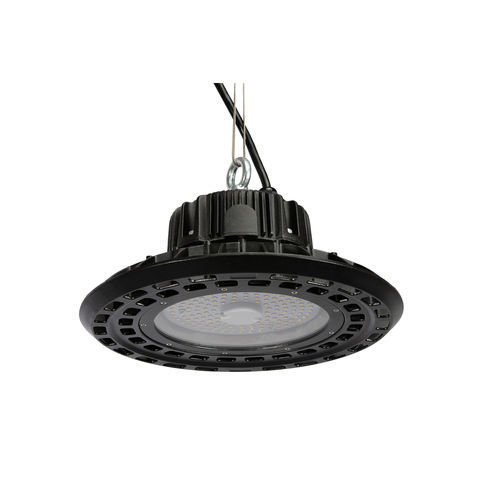

Hanging light fixture JNFB9-150S-5000-A1-IP65-ND

metal halideHIDcircular

Overview
150 Watt cool white LED flat high bay lamp designed for industrial and commercial spaces, offering IP65 ingress protection and a 72×72° integrated reflector for controlled light distribution. It uses original Philips Lumileds LEDs with a Meanwell HLG-240H driver, is non-dimmable and is specified as a direct replacement for 400 Watt metal halide/HID/HPS luminaires.

Features

• 150 W LED flat high bay luminaire
• Integrated 72° x 72° symmetric reflector
• Original Philips Lumileds LEDs
• Meanwell HLG-240H LED driver
• IP65 rated housing for dust and water protection
• IK08 impact resistance
• Non-dimmable
• Surge protection 10 kV
• Designed to replace 400 W metal halide/HID/HPS

Technical specifications

• Product SKU: JNFB9-150S-5000-A1-IP65-ND
• Power Consumption: 150 W
• Input Voltage: 100-305V
• Input Voltage Range: 100~305V AC
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell HLG-240H
• Total Lumens Output: 26,200 lm
• Colour Temperature (K): 5000 K (cool white)
• Color Rendering Index (CRI): >70
• Power Factor: >0.95
• Beam Angle (°): 72° x 72°
• Beam Angle Range: 100+
• Beam Angle Format: Symmetric
• Dimming Capability: Non-dimmable
• IP Rating: IP65
• IK Impact Rating: IK08
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Surge Protection: 10 kV
• Input Cable Type: H07RN-F 3G1.0
• Fixture Height: 166 mm
• Fixture Length: 340 mm
• Fixture Width: 340 mm
• Number of Lamps: 1 lamp(s)
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan (Hours): 50,000 hours
• Product Dimensions (packaging): 340 x 340 x 166 mm
• Net Weight: 3.7 kg
• Export Carton Dimensions: 360 x 360 x 205 mm
• Products per Carton: 1
• Export Carton Gross Weight: 6.2 kg
